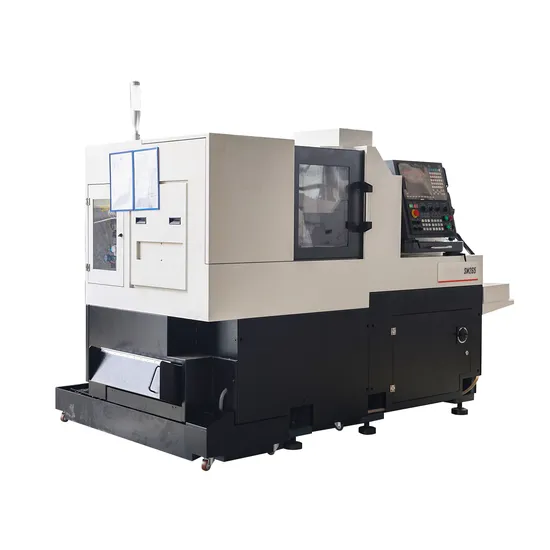

Compact Swiss CNC Lathe Machine for High-Quality Metal Fabrication and Precision Work

Product Description

Product Description
Discover the unparalleled versatility and precision of the Swiss-style lathe, also renowned as the CNC automatic lathe. This masterpiece of engineering in precision processing machinery offers an expansive range of functions, including tapping, milling, drilling, and turning operations with exceptional accuracy. Outfitted with groundbreaking dual spindles and an innovative double Y-axis, this machine excels in simultaneous processing, drastically reducing processing times. Its superior strength and efficiency make it ideal for batch production of complex, non-standard components, particularly precision hardware and shafts requiring bespoke shaping solutions.
Product Parameters

Items		SX325
Mechanic	System	FANUC 0i TF-PLUS	SYNTEC 220TB
	Max.RPM	Main8,000min-1/Sub8,000min-1	Main6,000min-1/Sub8,000min-1
	Max.Turning Diameter	φ32mm
	Main Spindle Stroke	280mm
	Rapid traverse speed	32m/min(X1:24m/min)	24m/min
Tools	O.D Tools	6X [16×16]
	I.N Tools	5X [φ20-ER16]
	Cross Driven Tools(integration)	4X [ER16]
	Back end tools(fixed)	4X [ER16]
Motors	Main	5.5/7.5KW	5.9KW
	Sub	1.5/2.2KW	3.9KW
	Cross	0.55/1.1KW	1KW
	Drive	0.75KW	1KW
	Coolant	0.9KW
Others	Coolant tank capacity	200L
	Lubrication tank capacity	1.8L
	Central Height	1,000mm
	Weight	3,800Kg
	The size (L×W×H)	2581×1563×1791mm
NC NC Control	/Controllable Axes	7axis/4axis
	LCD	LCD 10.4"
	System standard parameters	Standard
	Rigid tapping	Standard
	Hand wheel	Standard
	/ Synchronous/hybrid control	Standard
	Helical interpolation	Standard

Items
Standard units	Hand wheel	/C+ Main/Sub axis C + brake
	Floodlight	The product output device
	Transformer	Centralized lubrication system
	Three color light	Synchronus rotary guide bush holder unit
	C:0.001° C axis resolution: 0.001 °	Auxiliary shaft workpiece ejection device
	M Air blow on Sub spindle	Cooling box
0ptionanl units	Bar feeder	Long after loading device
	Chip conveyor	Rectangular power seat
	Oil cooler	Dynamic seat adjustable Angle
	Gun drill	After the end of the quick change perspective
	Oil mist collector	2[ER16]+1 [ER16] 2axis eccentricity tools (rotating)+1axis (fixed)
	High pressure pump	3[ER16] 3axis eccentricity tools (rotating)
	Thread whirling rings	3+[ER16] Back end tools 3axis (rotating)+ 1 axis (fixed)

Detailed Photos
Application
Applications of Swiss Machining
Originally developed in the Swiss watchmaking industry, Swiss machining's applications have dramatically broadened, offering significant advantages to numerous sectors. Industries currently leveraging this state-of-the-art technology include:
1) Aerospace
The aerospace sector greatly benefits from the ultra-precise parts crafted through Swiss machining. Aerospace components, including fans and fasteners, are often manufactured using Swiss machines. With the use of metals like aluminum alloys and steel, these components are ensured to be durable and precise.
2) Medical devices
In the medical industry, Swiss-type lathe products are widely adopted for producing intricate components with high precision. This machining method is crucial in crafting surgical instruments and implants, underscoring the significant impact of Swiss-type lathe technology on medical device manufacturing.
3) Electronics
As modern electronics evolve into more compact and complex forms, traditional lathes fall short of meeting production demands. Manufacturers have shifted to advanced solutions like CNC Swiss machining, which excels in producing intricate electronic components such as connectors and pins with outstanding precision and efficiency.
4) Automotive
Swiss machining solutions are widely adopted in the automotive industry, driving forward the latest mechanical innovations. This technology facilitates the manufacture of smaller, more complex components essential for cutting-edge vehicles.
Automotive manufacturers harness this cutting-edge technology to produce suspension components, carburetor covers, and engine parts. The industry gains substantial advantages, including reduced costs, optimized manufacturing processes, and increased production speeds.
Our Advantages
1. Professional Supplier: Trust our expert team, dedicated to delivering superior precision machinery solutions tailored to your exact needs.
2. Best Quality: Benefit from unmatched quality standards that assure reliability and peak performance, highlighting our commitment to excellence.
3. Best Service: Enjoy exceptional customer service where your satisfaction is our top priority, ensuring a smooth and seamless experience from inquiry through to delivery.
4. Best Price: Capitalize on our competitively priced offerings that provide excellent value without compromising on quality or service.
Packaging & Shipping
FAQ
1.What products do we have ?
Machine :laser engraving machine ,laser cutting machine ,laser welding machine ,laser marking machine /cnc lathe machine ,swiss type cnc lathe machine ,cnc machine center
2.Why Choose us ?
1)Faster delievery time
2)Full set of production equipment
3)Any third party test can be accepted
4)Payment terms are more flexible ,both TT and LC can be accepted
5)Perfect Pre-sale and After-sale services can be provided within 24 hours online
3.What is the best advantage do we have ?
Best Quality ,Best service ,Best price

---
