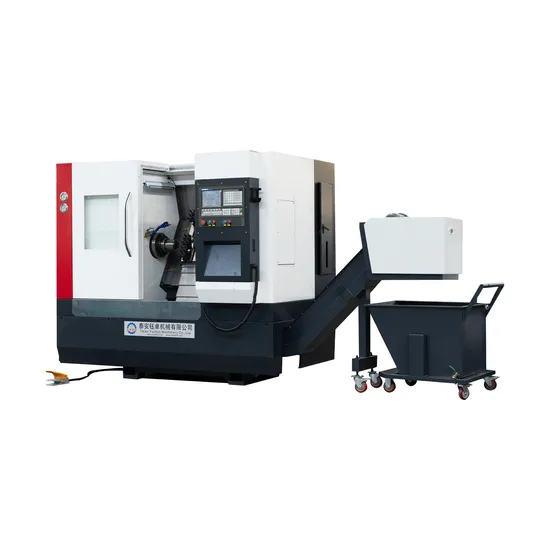

| Items | CK0625 | CK0632 | CK0640 | CK0660 | CK0680 | ||
| Spindle bore | Φ25mm | Φ32mm | Φ42mm | Φ60mm | Φ80mm | ||
| Max. swing over bed | Φ300mm | ||||||
| Max. swing over carriage | φ130mm | ||||||
| Max length of work piece | 240mm | ||||||
| X- axis max motion traveling schedule | 200mm | ||||||
| X-axis fast moving speed | 6000mm/min | ||||||
| Z- axis fast moving speed | 8000 mm/min | ||||||
| X-axis feed rates | 1~2000mm/min | ||||||
| Z- axis feed rates | 1~1800mm/min | ||||||
| Range of spindle speed | 50~2500rpm | ||||||
| Thread machining scope (metric system) | 0.25~12mm | ||||||
| Thread machining scope (British system) | 28~3 1/2 | ||||||
| Stations of tool carrier | gang-type tool carrier | ||||||
| Power of the main drive motor | 3KW | ||||||
| Overall dimensions(L×W×H) | 1550×920×1450 | ||||||
| Net weight | 850 kg | ||||||
| Model | TCK42A | TCK42B | TCK42C | ||
| Max.swing over bed | mm | 420 | |||
| Max.rotation diameter over pallet | mm | 160 | |||
| Travel | mm | X:240 | X:240 | X:220 | |
| Z:300 | Z:400 | Z:700 | |||
| Linear guide width | mm | 30 | 30 | 45 | |
| Spindle head model | A2-5 | A2-6 | A2-6 | ||
| Turret type | gang-type tool carrier | gang-type tool carrier | gang-type tool carrier | ||
| Spindle bore | mm | 56 | 62 | 62 | |
| Spindle speed | rpm | 4000 | 4000 | 4000 | |
| Main motor power | kw | 5.5 | 7.5 | 7.5 | |
| Cutting speed | mm/min | 1-4000 | 1-4000 | 1-4000 | |
| Positioning accuracy | mm | 0.008/300 | 0.008/300 | 0.008/300 | |
| CNC controller | Siemens808D | Siemens808D | Siemens808D | ||
| Cooling system | MC-4000/ACP-251A | MC-4000/ACP-251A | MC-4000/ACP-251A | ||
| Automatic lubrication system | 2232X | 2232X | 2232X | ||
| Lighten system | LED | ||||
| Machine size | mm | 2000X1400X1700 | |||
| Weight | Kgs | 1950 | |||
| Model | VCK700 | VCK1000 | VCK1300 | ||
| Max.swing over bed | mm | 700 | 1000 | 1300 | |
| Max.cutting diameter | mm | 660 | 910 | 1210 | |
| Diameter of the worktable | mm | 400 | 600 | 1000 | |
| Number of spindle speeds | rpm | 50-500 | 80-350 | 80-350 | |
| Cutting feedrate | mm/min | 0.1-1000 | 0.1-1000 | 0.1-1000 | |
| Turret vertical moving distance | mm | 600 | 650 | 750 | |
| Turret level of mobile distance | mm | 450 | 520 | 720 | |
| Longitudinal fast shift speed | mm/min | 8000 | 8000 | 8000 | |
| Vertical fast shift speed | mm/min | 5000 | 6000 | 6000 | |
| Stations of tool carrier | 4 | 4 | 4 | ||
| Chuck size | mm | 400 | 630 | 800 | |
| Tool bar section | mm | 25x25 | 32x32 | 40x40 | |
| Positioning Repeatability | mm | 0.012 | 0.012 | 0.015 | |
| Positioning accuracy | mm | X:0.012 Z:0.02 | X:0.012 Z:0.02 | X:0.018 Z:0.02 | |
| Motor power | kw | 15 | 18.5 | 22 | |
| Machine size | L W H mm | 2250x2150x2650 | 2450x2150x2850 | 2700x23003x200 | |
| Machine weight | kgs | 5800 | 6800 | 8600 | |
| Standard Configuration CNC Controller KND / GSK or Syntec Manual Chuck Lighten system Automatic lubrication system | Select configure Cnc controller siemens Hydraulic Chuck | ||||
| VL430 | VL550 | VL650 | VL850 | VL1160 | |
| X travel (mm) | 430 | 550 | 650 | 800 | 1100 |
| Y travel (mm) | 300 | 350 | 400 | 500 | 600 |
| Z travel (mm) | 450 | 500 | 500 | 500 | 750 |
| spindle nose to table (mm) | 100-550 | 100-600 | 120-620 | 120-620 | 150-900 |
| spindle center to column (mm) | 383 | 419 | 481 | 581 | 659 |
| X rapid feed (m/min) | 20 | 20 | 20 | 20 | 36 |
| Y rapid feed (m/min) | 20 | 20 | 20 | 20 | 36 |
| Z rapid feed (m/min) | 20 | 20 | 20 | 20 | 24 |
| cutting feed (m/min) | 1-10 | 1-10 | 1-10 | 1-10 | 1-10 |
| torque(X/Y/Z) (N·m) | 5/5/5 | 7/7/7 | 7/7/10 | 12/12/20 | 20/20/20 |
| table size (mm) | 700×300 | 700×350 | 800×400 | 1000×500 | 1200×600 |
| table max load (kgs) | 200 | 300 | 350 | 500 | 700 |
| table surface to ground (mm) | 760 | 820 | 840 | 840 | 950 |
| T slot (mm) | 3×16×110 | 3×18×105 | 3×18×125 | 3×18×150 | 5×18×100 |
| spindle type | Belt | ||||
| spindle speed (rpm) | 8000 | ||||
| spindle taper | BT30 | BT40 | |||
| main motor (kw) | 3.7 | 5.5 | 5.5 | 7.5 | 11 |
| Accuracy(JIS)(mm) | ±0.005/300 | ||||
| repeatibility (JIS)(mm) | ±0.003 | ||||
| machine weight (kgs) | 2000 | 2500 | 2900 | 4200 | 7000 |
| machine size (mm) | 1800*1700* 2100 | 2000*1900* 2300 | 2200*1950* 2300 | 2500*2200* 2500 | 3200*2500* 2900 |
| Standard accessory | Optional accessory |
| Fanuc-0i-mate-MF | Mitsubishi M70/GSK218M/ Stntec controller |
| full enclosure machine guard | Arm type tool changer |
| Funnel type ATC | chip cart |
| automatic central lubrication system with alarm | 4th axis |
| Z axis counter-balance weight | Metrol tool setters |
| spindle cooling unit | transformer to suit local power supply |
| spindle side air blow nozzle&coolant nozzle | screw type chip conveyor |
| machine window with safety glasses | |
| rigid tapping | |
| auto power off | |
| 3 colours warning lamp | |
| work lamp | |
| leveling pads&bolts | |
| operation manuals | |
| tool holder and pull stud |
