Dairy Farm Hot-DIP Galvanzied Milking Hall Airbag Flush Valve

Product Description

Product Introduction
Flush valve:Connected with flushing pipeline (PE315), pneumatic quick release type, each flush valve is equipped with a pneumatic airbag, which can quickly open or close the flush valve.During flush, the airbag deflates, the valve open, and flushing begin. After flush, the airbag inflates, the valve close.
When no flush,the top cover plate is flat with ground, and the surface of the top cover plate is anti slip, prevent cows from slipping.
Air source: from the air pump of the buyer.
Composition: flush valve, top cover plate, cover plate fixing bolts
Flush valve: over-all hot-dip galvanized, inner diameter: 210mm, outer diameter: 380mm, thickness:15mm
Cover plate: 4.75mm thick hot-dip galvanized steel plate, 800x800, connected by hinge
Cover plate fixing bolt: SUS304 countersunk hexagonal bolt

Component Name	attribute	value
gasbag	diameter	189mm
	Minimum height	140mm
	Height after inflation	160mm
	Capable of withstanding pressure	3000kg
	texture of material	Natural rubber
Airbag frame	texture of material	Hot dip galvanizing
	Specifications	380mm x 380mm x 385 mm
	Inlet diameter	250mm
Cover plate specifications	Specifications	800mm x 800 mm x6mm
	workmanship	galvanized corrugated sheets
Overall components	weight	45kg
	service life	More than 10 years

Assembling drawing as below:
Water pipe and air pipe all pre embeded under ground,less damage will be caused to the pipes;
If there is any problem with the flush valve,just open the top cover plate for the checking or repairs;
More than 10 years, dairy farm with our flush valve had no problems

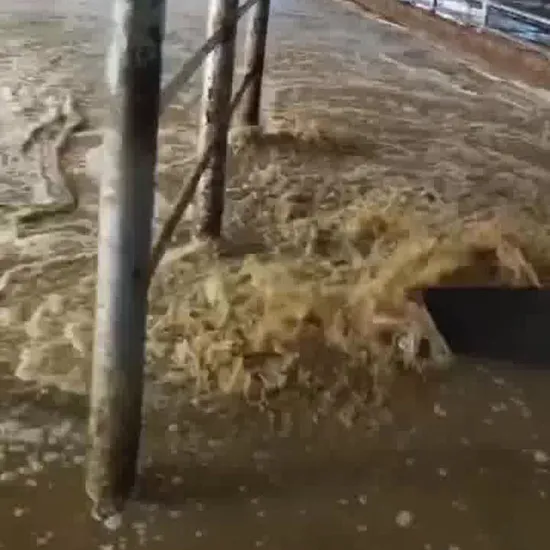

Application
Company Profile
FAQ Q1. Are you a factory or trading company?
A:We are a professional and comprehensive dairy farm equipment supplier integrating R&D, production and sales. Q2.May I visit your factory?
A:Sure, we warmly welcome you all pay a visit to our company. We can arrange pick ups at airport and station. Q3: Can you guarantee your quality?
A: Of course. We have about 20 years experiences in this field. We have skillful production,good workmanship as well as strict QC. we put high quality on our reputation.Q4: What can you by from our company?
A:Dairy farm design and diary farm equipment: such as rolling curtain, cow fan/ventilation fan, ceiling fan, cow headlock, cow free stall, cow brush,manure scraper, bedding recovery system, manure separator, cow mat,etc.

---
