Disposable Egg Tray Forming Machine Egg Tray Machine

Product Description

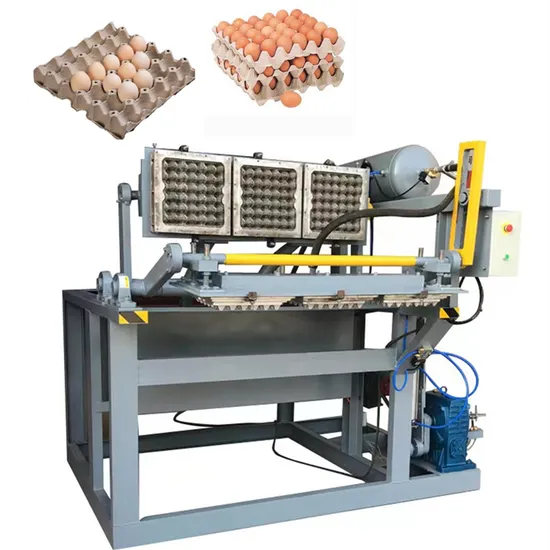

Low price disposable egg tray forming machine egg tray machine Product Description The automatic egg tray production line is composed of pulping system, forming system, drying system, stacking system, vacuum system, high pressure water system and air pressure system.Using waste newspapers, waste carton paper, office paper, scraps and other waste paper as raw materials, through hydraulic disintegration, filtration, water injection and other processes to prepare a certain concentration of slurry, through the molding system on the special metal mold through vacuum adsorption A wet blank is formed, which is then dried on a drying line, and then stacked after being hot-pressed on-line.
Product Parameters

Model	YG-1*3	YG-1*4	YG-3*4	YG-4*4	YG-4*8	YG-5*8	YG-6*8
Capacity (pcs/h)	1000	1500	2500	3500	4500	5500	7000
Forming Mould Quantity	3	4	12	16	32	40	48
Total Power (kw)	40	40	50	60	130	140	186
Electricity Consumption (kw/h)	28	29	35	42	91	98	130
Worker	3-5	4-6	4-6	4-6	4-6	5-7	6-8

Features Pulp system
Feed the waste paper and water into the pulping machine, and after about 20 minutes of high-concentration stirring, the pulp is
automatically transported to the pulp storage tank for storage and stirring. Then the slurry is transported to the slurry tank by
the slurry supply pump and stirred to the required consistency, and then transported to the forming machine.
Molding system 1. The molding machine adsorbs the pulp pumped into the hopper of the molding machine to the molding machine mold, and adsorbs the pulp to the molding machine mold through the suction of the vacuum system, and sucks the excess water into the gas-water separation tank. The water pump is pumped into the pool for storage. 2. After the mould of the forming machine absorbs the pulp and forms it, the manipulator of the forming machine takes out the finished product and sends it to the drying conveyor belt.
Metal drying system Multi-layer drying system, the internal temperature can reach 120 degrees. Fast drying paper tray, fast delivery. High temperature resistant material, long service life
Finished product auxiliary packaging (1) Automatic stacking machine
(2) Baler
(3) Transfer conveyor
Detailed Photos
Packaging & Shipping Packaging1. Out package: Standard marine export plwywood cases;2. Innner package:Stretch film and plastic film for humidity;3. Customized according to your requirement.ShippingPort: Tianjin, Qingdao, Shanghai or other ports according to your requirements. Sea freight: FOB/CIF/DDU quotation are all available.Transport method: By logistics; by automobile; by train; by shipping; by air etc.
Company Profile
FAQ 1.Q:Are you trading company or manufacturer?A:We are original equipment manufacturer.2.Q:How long is your delivery time?A:It is according to the model and quantity.Generally it is 3-5 days if the product are in stock.It will be 15-30 days if you want to customize the product.3.Q:Do you provide samples? ls it free or extra?A:Yes,we could offer you the sample.But it's not free.You need to pay for the sample and the cost of freight.4.Q:What is your terms of payment?A:We accept T/T,Westerm Union,Money Gram,Paypal,etc.

---
