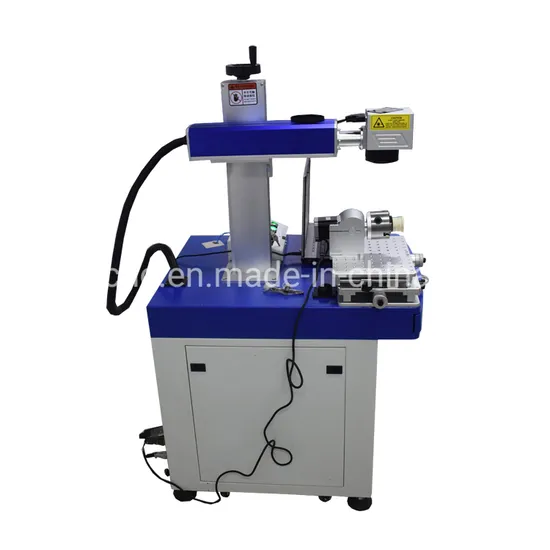

High Quality 3D Mini Fiber Laser Marking Engraving Machine

Product Description

High quality 3D Mini Fiber Laser Marking Engraving Machine Product Description
FIRMCNC Laser machine adopts international most advanced technology, lifetime can reach 100,000 hours, 8-10 years without any consumables and maintenance. The diode coupling with fiber to process pump, the pump light will course the particles reverse which can emit high quality laser beam. This is the best choice for the customers who have special requirements to the smallest & finest laser beam and character.
Feature of fiber laser marking machine
Excellent beam quality, suitable for precision and fine marking Light road fully sealed, good dust and earthquake resistance The laser output power is stable and the equipment reliability is high Long life, maintenance free, the average can reach more than 100,000 hours High efficiency, low energy consumption, saving use cost Small size, easy to handle, flexible and portable Separate one - piece cabinet, high integration, small floor space Stable signal transmission and strong anti-interference ability
Our Advantages
FIRMCNC Brand Fiber Marker is adopted international advanced technology and the working material is fiber.
The diode coupling with fiber to process pump, the pump light will course the particles reverse which can emit high quality laser beam.
1. Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery. It is small design and the complete weight is 22kg.
2. High Precision: Re-position precision is 0.002mm
3. High Speed: Imported scanning system makes the scanning speed is up to 7000mm/s
4. Easily Operating: Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW or Photoshop.
5. High Reliability: MTBF>100,000 hours
6. Energy Saving: The efficiency of optic-electrical converting is up to 70%
7. Low Running Cost: No wearing part. Free maintaining, no need to adjust the laser path.
Main parts and samples
Applied Materials:
1. All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition
2. Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather,
clothes , wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material
Applicable Industry : Electronic components, integrated circuits, mobile communications, medical equipment, eyeglasses and clocks, jewelry, auto parts, plastic buttons

Technical specification

SPECIFICATIONS FOR FIBER LASER MARKING MACHINE
Model	FMJ10W	FMJ20W	FMJ30W
Wave length of laser	1064nm
Laser power	10w	20w	30w
Marking scope	110*110 /200*200/300*300mm
Laser sources	Raycus or IPG Fiber module
Laser Head	Scanning head
The minimum focus facula diameter	20μm
Minimal character	0.01mm
Marking speed	≤7000mm/s
Repeated accuracy	0.0025mm
Cooling ways	Force-air Cooling
Power supply	220V/ 50Hz/2kVA
Process Material	All kinds of metal and part of Non-metal Materials
Support format	PLT, BMP, DXF, JPG, TIF, AI etc
Package	Standard export plywood case

Company Profile
Company information
Jinan FIRM CNC Equipment Co., Ltd producing cnc router is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router,wood cnc router, stone cnc router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate.
Package information:
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information

After sale service
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.
FAQ
How to choose the suitable model?
1. What materials you want to process with?( stainless steel, aluminum,brass, plastic...)
2. Effective marking size? ( 110*110mm, 175*175mm, 300*300mm...)
3. Do you need to mark on cylinder or flat metal plate or production line?
4. Do you buy it for personal use or selling?

Could I make an free sample ?
1.Yes, pls send the vectorgraph marking file and samples to us.Or we can find same materials to test it.
2.After sample finished, we can return it and also make videos,details photos for your reference.
How about the lead time,package and delivery?
1.Standard model 3 - 7 working days after receiving the payment.
2.There are 3 layers of package: waterproof thickening plastic bag,foam to protect from shaking,solid export wooden case.
3.Shipping by DHL Fedex TNT, delivery to airport or by sea.

How to install and use this laser marking machine?
The machine is already installed before shipping. We have very detailed English manual for laser system and laser marking
software,nearly all customers can learn it well by themselves very easily.We will also guide you if you have any doubts.
What if there is something wrong with laser marking machine?
Pls contact us at first time and do not try to fix it by yourself.We will help to solve it.

---
