Efficiency Redefined Unlocking Productivity High Precision CNC Machine Tool

Product Description

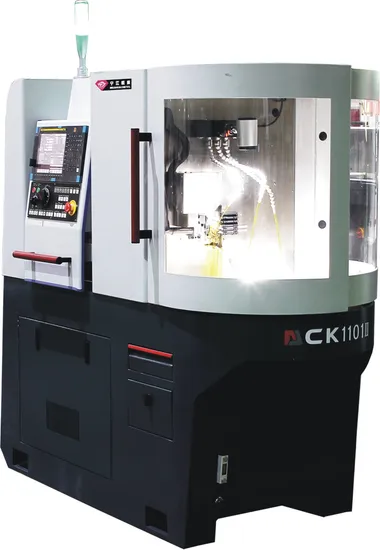

CK1101II CNC longitudinal cutting automatic lathe

Product Description

CK1101II series CNC CNC longitudinal cutting automatic lathe, specialized in high precision machining of small parts.Automatic cycle processing of cold drawn rod material (usually within 0.02mm, 0.2mm / 1000mm, and the accuracy of the rod shall not be lower than the accuracy of the processed parts).Can complete the shaft parts of the car outer circle, front drilling, front tapping, front boring, car thread, cutting groove, horizontal drilling, milling side, milling groove, radial tapping, cutting and other processes.
The machine tool is equipped with feeder interface, connected with the feeder, realize automatic feeding.The machine spindle adopts built-in spindle motor structure (electric spindle), the bearing adopts imported high-precision centripetal thrust angle contact ball bearing, with high rigidity and high stability; the motor adopts FANUC built-in spindle motor, short rise and deceleration time, Cs axis control and separation function; compact structure, stable operation, low vibration and low noise.
The machine tool adopts the row blade frame, spindle box movement, can be cut without center frame (no guide sleeve); when the full stroke rotary center frame, the slender shaft parts can be processed with high precision.The machine tool has the characteristics of high accuracy, compact structure, small footprint, convenient operation and beautiful shape. Product Parameters

Specification, parameters and accuracy indicators

Description	Unit	CK1101II
Max.bar.diameter	mm	Φ1
Max.cutting length	mm	30
Spindie rpm	r/min	16000
Number of tools	The	7
Main motor power	KW	0.5/0.75
Repeatability	mm	0.002
System/controlled axes		FANUC 0i-TF Plus/3 Axis
Rapid feed rate	m/min	20
Overall dimension	mm	1890×940×1750
Weight	kg	~1100

Detailed Photos

Our Advantages

CK1101II CNC slitting automatic lathe

Product introduction
The machine tool is a CNC slitting automatic lathe, which is specially used for high-precision processing of small parts. The machine tool uses bar materials for automatic cycle processing of continuous loading and unloading, and can complete processes such as turning the outer circle, threading, grooving, horizontal drilling, square milling, groove milling, radial tapping, and cutting of shaft parts.
Features of the machine tool
It adopts FANUC built-in spindle motor, which has short speed up and down times, and has Cs axis control and indexing functions; It has compact structure, stable operation, low vibration and low noise; It adopts a rapid movement speed of 20m/min to reduce empty cycles; The visible area and operating space of the cutting area are maximized; the rotatable panel is used for good operability; the machine tool adopts a row-type tool holder, which can perform high-precision processing of slender shaft parts; the machine tool is equipped with a material machine interface and is online with the material machine Finally, automatic loading of multiple bars can be realized; The machine tool has the characteristics of high precision, compact structure, small footprint, easy operation, and beautiful appearance.
Application industries
This machine tool is mainly aimed at the processing industry of precision shaft parts ≤1mm such as semiconductor probes.

Company Profile

Guangzhou Xinzhao Zhikong Precision Manufacturing Co., Ltd.

* Established in 2007: Our company was founded in 2007.
* Over 15 Years of Continuous Refinement and Innovation: Over the past 15 years, we have continuously honed our skills and pursued innovation.
* 20+ Invention Patents: We hold more than 20 invention patents.

Guangzhou Xinzhao Zhikong Precision Manufacturing Co., Ltd. is a professional precision lathe manufacturer and service provider, committed to small diameter shaft, pinhole parts processing solutions. KC series CAM CNC machine tools are the industry's first products developed and manufactured by the company, with a number of invention patents.
Guangzhou Xinzhao has advanced development and technical advantages in the field of probe and insert machine products, on-site tooling operations including axial and radial milling, drilling and tapping. In all kinds of Guangzhou Xinzhao CNC lathes have on-site processing applications.
Guangzhou Xinzhao is a responsible company with worldwide sales, systems developed in Taiwan and manufactured in China, known for providing matching support to customers, employees and the environment.
Our ultimate goal is to be altruistic and win-win, to become a professional partner to provide intelligent manufacturing solutions to serve the industry and positively impact the world.




FAQ


1.Who are you?

We are Guangzhou Xinzhao Zhikong Precision Manufacturing Co., Ltd.,which has two production bases in China.
We are a professional precision lathe manufacturer and service provider, committed to small diameter shaft, pinhole parts processing solutions.
KC series CAM CNC machine tools are the industry's first products developed and manufactured by our company, with a number of invention patents.
Welcome to visit our factory.


2.What's the delivery/lead time of your machines?

One month in the low season and three months in the high season

3.What's the acceptable payment terms?

We can accept payment by T/T

4.The machine is easy to learn?
Yes, it is very easy to learn. The detailed manual will be supplied with the machine together ,and we can provide online teaching via video calls with engineers and translation
5.Can we go to your factory and learn how to use the machine?
We sincerely welcome you come to our beautiful city. The training is free. It would be great honor to us.
6.How can I choose machines?
For the model selection, please send us the drawing of the turning part and our engineer will evaluate it and provide the suitable configuration of the CNC lathe fit for your needs.
7. How about the demo and testing?
We have a training center for the clients to study the operation of the machine. You are welcome to visit our factory and showroom anytime for the machines' demo. Furthermore, we could demo per your drawing of turning parts.
8. Where is our factory located? How can I visit there?
Our factory is located in Panyu City, Guangdong Province, China. And our showroom is located in Dongguan City,Guangdong Province, China. You are warmly welcome to visit both our factory and showroom.
9. Can we start with start with small quantity? What's the MOQ?
Yes,we can accept orders with 1 unit.

We want to know:

(1)What is your Industrial Voltage?
(2) We strongly suggest you tell us size, material of your workpiece for our evaluation, if possible, better to send us your workpiece drawing, so that we can recommend you the most suitable model.

---
