Plastic PVC/UPVC+PMMA/ASA PC/PP Corrugated/Glazed Tile /Wall Panel Roll Foaming Wave Roofing Sheet Tile /Corrugated Hollow Roof Making Extrusion Machine

Product Description

Product Description
PVC roofing tile is a type of asbestos-free composited sheet. It's mainly applied in the building construction, to meet high quality roofing tile demand.
----High speed tile machine (4-5 m/min)
----Power saving and ECO system (15% off),
----Quality products (Bimetallic & PLC Intelligence),
----Reliable quality ( All with world-famous brand).
Detailed Photos

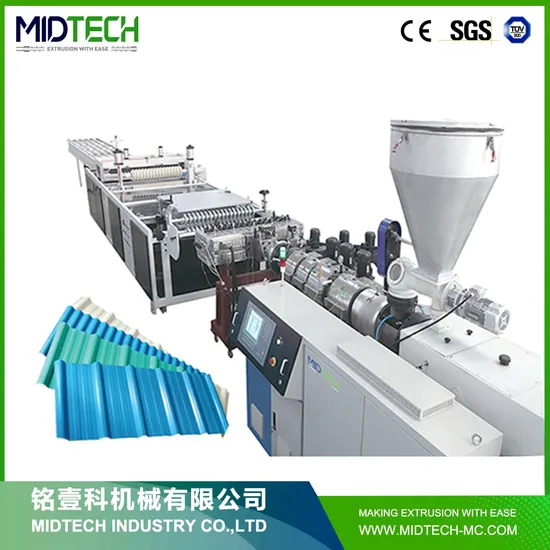

PVC glazed tile extrusion line consists of premixing units, conical extruder, co-extruder, T-die mold, calibration device, embossing rollers, saw cutter, hauling set, etc.

Process is: premixing the PVC resin with fillers, additives, then extrude the mixed PVC materials together with ASA/PMMA co-extruding, to T-die molding; after calibration, embossing, cutting, to make the final PVC tile.
Middle Tech can provide the complete solution for glazed tile extrusion, includes: machinery equipment( from premixing device to final tiles packing system), ackonwledge (fomulation, process operations), installation and trainning etc. Product Parameters
Specifications of PVC glazed tile:

Main extruder	SJZS-80+SJ-50	SJZS-92+SJ-65
Width of finished product	830 mm	1000 mm
Thickness of finished product	12mm	14mm
Drive motor	55kw+15kw	110kw+18.5kw
max output	300kg/h+50 kg/h	600 kg/h+80kg/h

Our Advantages
· Bright and colorful
· Resilient and durable-above 20 years
· Excellent insulation, flame retardant
· Corrosive proof and strong weather resistance
· Free cut, easy installation
Company Profile
FAQ
If You Have Any Questions ,Please Contact Us Any Time, We Are Here For Your Service!!!
