US$4,999.00-19,999.00
|
1 Piece
(MOQ)
|
Basic Info.
Horizontal Resolution
800TVL
Feature
Waterproof / Weatherproof, High Definition
Remote Control
Wired control camera
Equipment Type
Deep Well Inspection Camera
Diameter of Camera Head
45mm and 75mm Optional
Camera Head Material
Stainless Steel
Size of Screen
7′′ Digital LCD Screen
Price Terms
Fob/ EXW Works
Transport Package
Wooden Box Packing
Specification
2pcs wooden box packing
Production Capacity
300 PCS / Year
Product Description
| CR110-7NA | Deep Well Inspection Camera with 7'' LCD Screen |
| MONITOR | 7" Digital LCD screen |
| System | PAL / NTSC |
| Resolution | 800×480 |
| Viewing angle | 60° |
| Video channel | 1 channel INPUT & 1 channel OUTPUT |
| Power supply | DC 12V |
| Power consumption | <7.5W |
| Languages | English, Japanese, Russian, Spanish, Portuguese, Chinese |
| Image rotation | Image UP/ DOWN/ LEFT/ RIGHT rotation on screen's display |
| Working temp. | -20 ~ +60 centigrade |
| Storage temp. | -30 ~ +70 centigrade |
| CAMERA SENSOR | COLOR CCD SENSOR (removable camera part) |
| TV lines | HD 800 TVL |
| Power consumption | 6W |
| System | PAL / NTSC |
| Night visibility | 8pcs Bright White LED light (75mm camera) |
| Focus (mm) | 3.6mm |
| Viewing angle | 90° |
| Diameter of Camera | 45mm and 75mm optional |
| DVR Video Recording | DVR Video Recording function, support up to 32GB SD card |
| | |
| PACKING | 2pcs wooden box packing |
| wooden box NO.1 | 800x800x600 mm (about 70kgs) |
| wooden box NO.2 | 600x600x400 mm (about 25kgs) |
| Total G.W. | 95KGs (cable at 200M) |
| Total N.W. | 80 KGs (cable at 200M) |
Product Pictures
----------------------------------------------------------------------------------------------------------------------

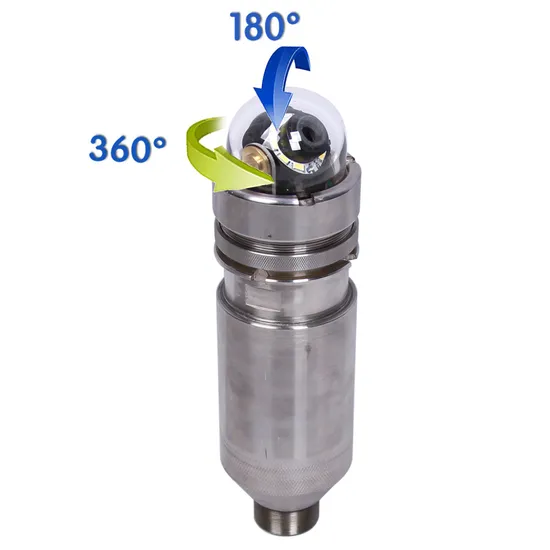

Deep Water Well Inspection Camera
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Diameter at 45mm & 75mm Camera Optional
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
>>
