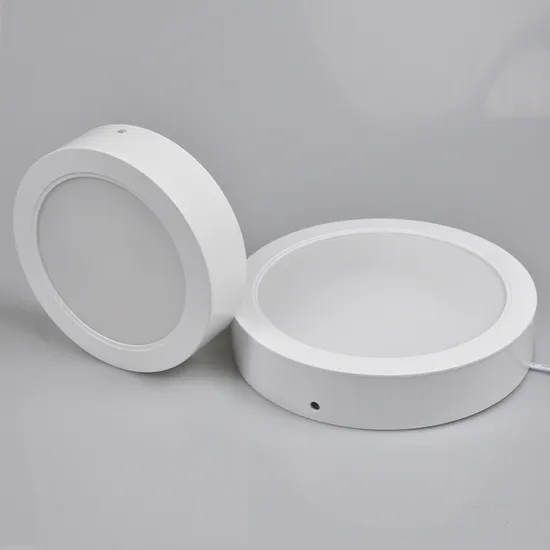

6W 9W 12W 15W 18W Slim Aluminum LED Panel Light for Home Ceiling Lighting

Product Description

6w 9w 12w 15w 18W Slim Aluminum LED Panel Light for Home ceiling Lighting
led panel light Specification:
A.outer ring :GB 12#environmental-friendly aluminum is adopted and is overall die-caSt to take shape, with beautiful structural design.
B. diffuser plate:ps material from Japan Mitsubishi is used. The 1.5mm ultrathin diffuser pate has a light transmittance of up to 92%,and gentle light diffusion can effectively reduce fatigue and create the light environment.
C. Light guider:using Mitsubishi material, thickness 4mm with high precision laser dot, make the light even and comfortable, no dark space, can effectively protect the eyes.
D. reflective sheeting(round and fan-shape):the Hp LCD TV backlight reflective sheeting has superstrong light reflection,with thickness of 0.25mm-0.55mm.
E. Placed cushions:the soft polyurethane foam rubber, sealing, good elastic memory, high temperature resistant, fire retardant, effectively fixed lamp body internal optical components.
F. Rear cover:0.8mm iron back cover, dumb white,fine Elizabeth Barbara ohm two kind of spraying process,spray evenly overall sense.
G. Driver:low-voltage constant-current intelligent IC driver is used, which is of integated desing and make of the imported PC maderial,with dust prevention, compression resistance and high temperature resistance.Ambient temperature for working:-20°C-85°C
LED Panel light specification
Description: LED panel light
Power: 18W
Chip: SMD2835
Voltage: AC85V-265V
Beam angle:120
Life Time: >50, 000 hours
CRI(Ra)>70
LM/W:70LM-75LM/W
Warranty: 2 years
Safety Cert.: CE & RoHS
PF>0.9
Product Feature
1. Lifespan: More than 50, 000H.
2 Flicker-Free Lighting: Eliminate eye strain and headaches
3. Energy-saving: Saving 80% than the ordinary lamp.
4. Green and health protection, no pollutio, more comfortable for our vision
5 Use high quality SMD2835 LED as light source, which is high brightness, long life and less heat
6. Self-developd constant-current power for power supply circuit greatly improve the stability of our products. And the power is built in, increasing light-emitting area
7. Extreme Efficiency: Over 75% more efficient than incandescent lighting
8. Good heat dissipation by unique heat-sink design
9. Flexible Voltage: Use LED ceiling lamp in AC85-265V voltage
10. Reliable protection design, free from over-current, over-voltage, short-circuit, and overload risks
11. No Mercury Inside, No UV, No IR, good for your health
Paremeter List

Item	Watt	Housing size (mm)	Opening(mm)	LED Qty	Voltage
SLPL03R	3W	90x90	75x75	SMD2835*15	AC85-265V
SLPL06R	6W	120x120	105x105	SMD2835*30
SLPL09R	9W	150x1150	135x135	SMD2835*45
SLPL12R	12W	174x174	160x160	SMD2835*60
SLPL15R	15W	200x200	185x185	SMD2835*75
SLPL18R	18W	225x225	210x210	SMD2835*90
SLPL24R	24W	300x300	250x250	SMD2835*120

Application Area
1. Hotels
2. Conference/Meeting rooms
3. Factories& Offices
4. Commercial Pureposes
5. Residential /institution buildings
6. Schools, Colleges& Universities
7. Hospitals
Installation instructions
1.This product is limited to indoor use.
2.Hole size of the ceiling should be the same as the lamp's cutout size.
3.Connect the Dcconnectors with the lamp and driver.
4.Insert the pinch to the ceiling, make sure it is fastened.

---
