Factory Direct Sale Large Capacity Grain Silo 1000 Tons Grain Storage Silos

Product Description

Factory Direct Sale Large Capacity Grain Silo 1000 Tons Grain Storage Silos Product Description
Fabricated steel silo - Cone bottom type
Product characteristics:
1.Factory price and perfect after-sales service.
2.Professional multi size customized silo.
3.Professional design and development capabilities.
4.100% QC inspection before shipping.
5.Cases in many countries.
6.Foreign 24 hours provide solutions.
Detailed Photos
Grain Steel Silo Production Process

Product Parameters

Popular Hopper Bottom Steel Silo Technical Specifications
Capacity (Based on wheat density)	50Ton	100Ton	150Ton	200Ton	300Ton	500Ton	1000Ton	1500Ton
Model	TCZK 03605	TCZK 04507	TCZK 05507	TCZK 06406	TCZK 07307	TCZK 07313	TCZK 11010	TCZK 12811
Diameter(m)	3.667	4.584	5.500	6.417	7.334	7.334	11.000	12.834
Total Height(m)	9.56	12.53	13.25	12.85	14.70	21.42	20.95	23.51
Volume(m³) Density:0.75ton/m³	69	150	222	273	415	699	1346	2039

Popular Flat Bottom Steel Silo Technical Specifications
Capacity (Based on wheat density)	1000Ton	1500Ton	2000Ton	2500Ton	3000Ton	5000Ton	8000Ton	10000Ton
Model	TCK 10014	TCK 11915	TCK 13715	TCK 15514	TCK 15518	TCK 18321	TCK 24718	TCK 25621
Diameter(m)	10.084	11.918	13.750	15.584	15.584	18.334	24.751	25.668
Total Height(m)	18.69	20.34	20.87	20.30	24.78	28.60	26.99	30.60
Volume(m³) Density: 0.75ton/m³	1335	2009	2701	2467	4145	6693	10879	13484

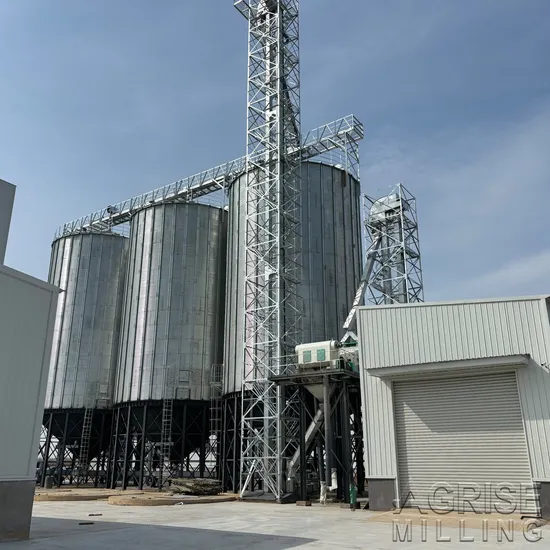

Sucessful Cases
Welcome to contact us for more professional solution and Competitive offer!

---
