Product Details
Product Description
Product Description

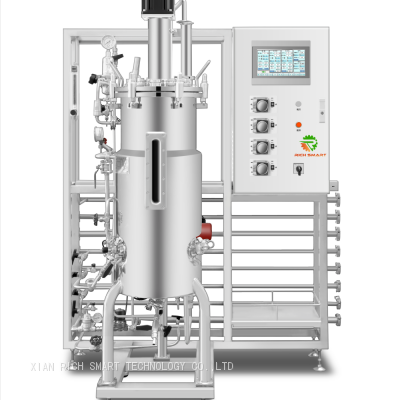

High Quality Stainless steel bioreactor with long gurrantee
Standard Stainless Steel Vessel
Available from 10L to 500L (max. 20ton), up to 70% working volume (larger volume available).
Batch, fed-batch, continuously-batch, semi-continuous and high-density batch systems.
Sterilization-In-Place (SIP), equipped with high temperature steam pipeline.
Standard sensor ports for precise measurement and control of temperature, pH, DO, antifoam, feed, aeration and pressure.
Optional Clear-In-Place (CIP), one port for cleaning device is provided at the top of the tank.
Jacket vessel allows hot water and cooler to adjust the temperature.
Standard with mechanical stirring, special stirring shaft material and precision processing. it has ideal dynamic balance performance with proper ratio of upper and lower shaft.
Standard with flat or pitched-blade- impellers; other type impellers are available.
Features of Controlling Tower
Multiple Control Function
Associated control: temperature, stirring speed, pH, dissolved oxygen, defoaming, airflow, tank pressure, feed amount and other direct parameters.
Remote monitoring: Suitable for smartphones, tablets, laptops and PC for instant remote monitoring.
Step control: Users can switch directly between manual control and step control and set at least 10-step control program for temperature, agitation, PH, DO and feeding.
Smart PID control
Temperature, stirring speed, Ph, DO and other parameters in the tank can be controlled by subsection curve setting according to the process requirements.
Temperature Control: Adopt PID automatic control mode; SS316L jacket base for electric heating and cold water for cooling.
Dissolved oxygen control: equipped with DO electrode and shielded conductor, DO is associated with stirring motor speed, feeding, airflow, tank pressure and other parameters.
PH value control: Intelligent PID system control built-in control peristaltic pumps for acid-alkali adjustment, with high control precision.
Antifoam control: Foams are automatically detected and the peristaltic pump is controlled to add defoamer in proportion to time.
Feeding control: Peristaltic pump switch control (manual, automatic, and off); accumulation volume control; coupled with other parameters (DO, pH, etc).
Upgrading option list
Gas mixing options: Air/O2/CO2/N2
Cleanliness detection
Online live cell detectio
Automatic vessel pressure control
Top areation
Thermal mass flow controller
CO2 detection
Redox
Exhaust detection analysis
Liquid level
Filling weighing system
Methanol and ethanol content online detection
Additional feed pump
Variable speed pump
Upper controller
Magnetic drive
Customizable blade
Vessel passivation
Custom port
Cover lifting
Standard Type Specifications
Model
| RS-BS-X1
| RS-BS-X2
|
Controller
| One console for one vessel
| One console for two vessels
|
Display / Operation
| Touch panel 10" / Touch screen
| Touch panel 10" / Touch screen
|
Gas inlet
| 1 overlay with 4 deep gas inlets
| 1 overlay with 4 deep gas inlets for each vessel
|
USB
| 1 x RS485
| 2 x RS485
|
Vessel
| 10L / 15L / 20L / 30L / 50L / 100L
| 2 x 10L / 15L / 20L / 30L / 50L / 100L
|
Working volume
| 9.8L / 13.5L / 20.3L / 25.5L / 43.5L / 99L
| 2 x 9.8L / 13.5L / 20.3L / 25.5L / 43.5L / 99L
|
Stirring speed
| 5 - 1000 rpm
| 5 - 1000 rpm
|
Motor power (Kw)
| 0.75/1/1/1/0.75/1.5
| 0.75/1/1/1/0.75/1.5
|
Pressure
| 0.30Mpa
| 0.30Mpa
|
Material
| SS304 & SS316L stainless steel
| SS304 & SS316L stainless steel
|
Serilization
| Sterilization in place
| Sterilization in place
|
Feeding pumps
| 4 peristaltic pumps
| 8 peristaltic pumps
|
Peristic pump tube ID
| 0.5 mm
| 0.8 mm
|
Peristic pump flow rare
| 0.06/revolution
| 0.15/revolution
|
Sensors
| PT100, DO, foam, pH
| PT100, DO, foam, pH
|
Temperature
| Eletrical heating sleeve with bottom water to control heating / cooling
| Eletrical heating sleeve with bottom water to control heating / cooling
|
pH control
| Range: 2 - 12（±0.01)，display: 0 - 14（±0.01)
| Range: 2 - 12（±0.01)，display: 0 - 14（±0.01)
|
DO control
| Range: 0 - 150% (±3%), international eletrode and shielded wire detection
| Range: 0 - 150% (±3%), international eletrode and shielded wire detection
|
Defoam control
| Automatic foam detection, automatically add defoamer in proportion to time
| Automatic foam detection, automatically add defoamer in proportion to time
|
Agitation control
| Servo motor, PID control, stepless speed regulation
| Servo motor, PID control, stepless speed regulation
|
Areation airflow
| 2VVM
| 2VVM
|
Areation filter
| 0.2μm
| 0.2μm
|
Areation
| 0.5SLPM, 1.0SLPM, 2.5SLPM, 5.0SLPM, 10SLPM, 25SLPM (customizable)
| 0.5SLPM, 1.0SLPM, 2.5SLPM, 5.0SLPM, 10SLPM, 25SLPM (customizable)
|
Areation flowmeter
| Air calibrated, 1.2bar 20℃
| Air calibrated, 1.2bar 20℃
|
>>
