specification | Equipment name | UNIT | QTY | Remark |
| YV5B | Hydraulic shaftless mill roll stand | a | 3 | Spindle ¢ 240mm, hyperbolic heavy rocker, expand chuck , multi-point brake, hydraulic drive lifting, panning left and right on the middle.
|
| | Paper trolley | a | 6 | track length6000mm,trolley used 10mm plate welding. |
| RG-1-900 | Top paper preheat cylinder | a | 1 | roller ¢900mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°. |
| RG-1-900 | Top paper preheat cylinder | a | 1 | roller ¢900mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°. |
| SF-320C | Fingerless type single facer | a | 1 | Corrugated main roller ¢320mm,material with 48CrMo alloy steel, tungsten carbide dealing, Tile roll modular group lifting transfer. Airbag ballasting structure,import main bearing,PLC automatic control glue,HMI touch screen,Breaks automatic parking relief,steam heating way. |
| RG-2-900 | Triple preheater | a | 1 | roller ¢900mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°. |
| GM-20 | glue machine | a | 1 | Glue roller diameter 269mm.Each independent frequency motor drive,PLC adjust glue gap and HMI. |
| ZDF | Conveyor bridge | set | 1 | 200mm main beam channels, independent inverter motor drive pull paper feed, adsorption tension. |
| SM-F | Double facer | set | 1 | Rack 360 mm GB channel,Chrome hot plate 600 mm *14 pieces,10 groups of the hot plate design.PLC automatic control press plate. Temperature display, frequency motor. |
| NCBD | NCBD thin blade slitter scorer | a | 1 | Tungsten alloy steel, five knives eight lines,zero-pressure line type. Schneider servo computer automatically discharge knife, suction outlet width automatically adjusted. |
| NC-150 | NC cutter helical knives | a | 1 | Full AC servo control, energy storage brake, helical blade structure, oil-immersed gears,10.4-inch touch screen display. |
| DM-XLM | Automatic small gantry stacking machine | a | 1 | Servo drive platform lift, three sections of frequency transmission, automatic points in batches, automatic stacking discharge, imported high-strength belt output, out paper side standard transport aircraft |
| ZJZ | Glue station system | set | 1 | Customer-owned pipeline.glue device respectively carrier pot,main pot,storage pot,and send glue pump,back glue pump. |
| QU | Gas source system | a | 1 | Including 0.6m³gas tank 1 unit.Air pump,pipeline is prepared by the customers. |
| ZQ | Steam system | set | 1 | Including within equipment pipelines valve,traps,meter and steam elements,customer-supplied heat and piping. |

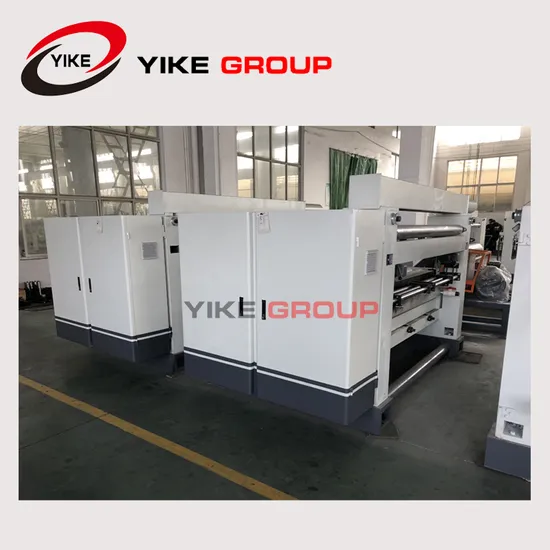

| DQ | Electrical control cabinet system | set | 1 | Electrical control system: the whole line speed regulation institutions adopts frequency conversion motor.Electric cabinet surface electrostatic spraying paint, wear resistance and beautiful.Main contactor main relay adopt famous brand product. |
