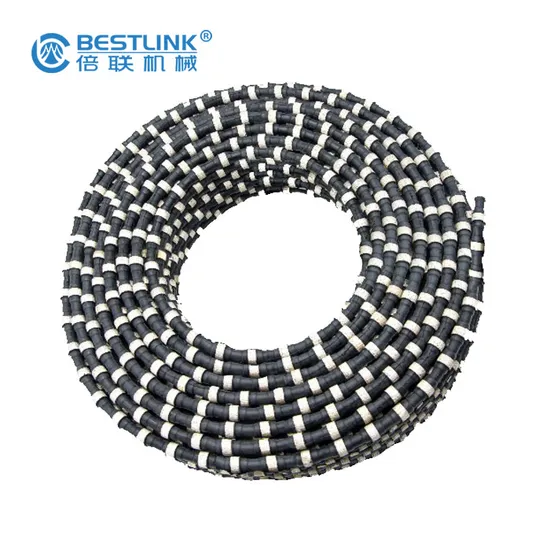

Marble and Granite Quarry Stone Block Extraction Rubberized Diamond Wire

Product Description

Marble and Granite Quarry Stone Block Extraction Rubberized Diamond Wire
1. Diamond wire saw for quarry cutting

Bead dia. (mm)		Fixed by	Beads /m	Cutting material	Line speed (m/s)	Efficiency (m2/h)	Life time (m2/m)
Φ11		Rubber	40	Soft granite	28-35	16-26	15-25
				Mid-hard granite	26-32	12-20	12-20
Φ11.5				Hard granite	24-30	8-16	8-15
Φ10.5		Rubber	37	Soft marble	30-40	10-15	32-42
Φ11			40	Mid-hard marble	25-35	7-12	22-32
Φ11.5				Hard marble	20-30	6-10	18-28

2. Diamond wire saw for shaped cutting

Bead dia. (mm)		Fixed by	Beads /m	Cutting material	Line speed (m/s)	Efficiency (cm/h)	Life time (m2/m)
Φ8		Plastic	37	Soft granite	22-28	60-80	9-15
Φ9				Hard granite	18-24	20-35	5-10
Φ8.5		Plastic	33	Soft marble	25-34	100-150	20-45
Φ9				Hard marble	23-30	50-100	18-30

3. Diamond wire saw for reinforced concrete cutting

Bead dia. (mm)		Fixed by	Beads /m	Cutting material	Line speed (m/s)	Efficiency (cm/h)	Life time (m2/m)
Φ10.5		Plastic +rubeer	40	Normal reinforced concrete	20-28	2-5	2-7
Φ11				Hard reinforced concrete	18-25	0.8-2	1-2.5
Φ11.5				Steels/metal structure	16-22	0.5-1	0.5-1.2

4. Diamond wire saw for multi-wires machine cutting

Bead dia. (mm)		Fixed by	Beads /m	Cutting material	Line speed (m/s)	Efficiency (cm/h)	Life time (m2/m)
Φ6.3		Plastic	37	Soft granite	26-32	1.2-1.5	10-15
Φ7.3				Mid-hard granite	26-32	0.6-1.2	8-10
Φ8.3				Hard granite	26-32	0.4-0.6	6-8

---
