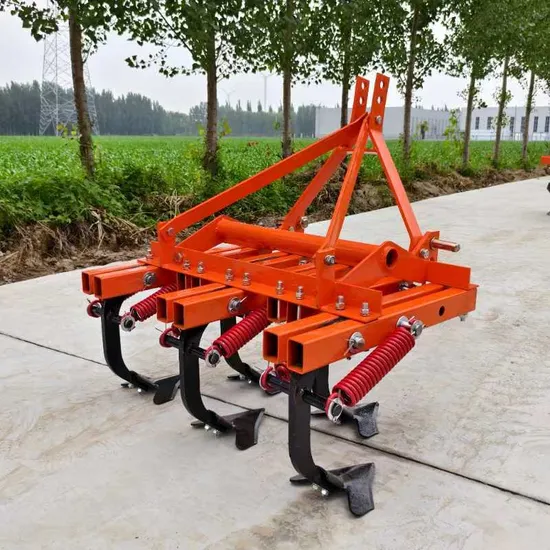

Spring Tine Tiller Cultivator for Farm Machinery

Product Description

Product Description
The 3ZT series of spring cultivator is developed from our company according to the demand of foreign market. This machine adopts double-spring tension device which enables the tines during operation to bounce when meet with obstacles and return to normal working quickly after over them,by which the tines are protected .It has advantages of row spacing to be conveniently adjusted and the depth to be easily controlled. and the machine is suitable to cultivate and loosen soil in the corn, cotton and beans field.
Product Parameters

Model	3ZT-1.2	3ZT-1.4	3ZT-1.8	3ZT-2.2	3ZT-2.5	3ZT-3.0
Width of cut (mm)	1200	1400	1800	2200	2500	3000
Depth of cut (mm)	100-250
No of tines	5	7	9	11	13	15
Weight (kg)	260	320	400	490	550	640
Tractor power (hp)	25	30-40	40-50	50-70	70-80	80-100
Mounted	l		ll

Detailed Photos
Company Profile
United Metal Products (Qingdao) Co., Ltd. Is located in west coast new economic district, Qingdao, China. Our products exported to the United States, Canada, Brazil, Germany, France, Italy, Denmark, Australia etc for more than 16 years. We have passed certification of ISO9000, ISO14001, TS16949. etc. We focus on metal parts including casting parts and machining parts for construction machinery, agricultural machinery, auto parts, railway parts etc. Machining casting parts, forging parts, aluminum die casting parts etc. Bar machining parts, shaft etc. Bolt/nut/washer. Welding parts, sheet metal part, bending parts etc. Fin-type radiators. Our vast experience includes parts ranging from 0.01kg to 1000 kg with annual volumes from 500 up to 200, 000 pieces in industries such as: Construction - Excavators, Articulating Dump Trucks, Graders, Pavers, Wheel Loaders, Skid Steers, Asphalt CompactorsAgriculture - Tractors, Combines, Sprayers, Seeders, Implement Attachments, Planters, Air Drills, Cultivators, BalersMaterial Handling - Forklifts, Reach Trucks, Order PickersAerial Platforms - Scissors Lifts, TelehandlersRail/Transportation - Freight TrainsForestry - Feller BunchersMining - Mining Trucks

---
