Product Description
Product Description

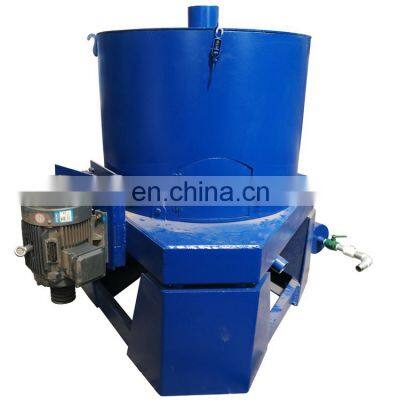

Product DescriptionProduct Application knelson gold centrifugal concentrator:Knelson gold centrifugal concentrator is kind centrifugal concentration equipment for gold. It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings. The STLB gold centrifugal concentrator will separate any heavy material from any light material. The gold centrifugal concentrator can treat particle sizes from below 10 microns up to a maximum of 6mm and is most commonly used for recovery in Gold and Platinum. Other recovery uses include mercury, palladium, tantalum, copper, silver and diamond indicator minerals.Knelson gold centrifugal concentrator technical parameters:ModelSTLB20STLB30STLB60STLB80STLB100Feeding capacity(t/h)0-0.62-38-1235-4570-80Fluidization water required(m3/h)2-33-57-1030-3655-80Slurry Water Required(m3/h)1.5-45-78-1235-5070-120Feeding Density(%)0-500-500-500-500-50Feeding size(mm)0-30-30-50-50-5Concentration Cleaning Up CycleVein gold 1-3 Hours Placer gold 2-6 HoursConcentrate weight(kg)210-2030-4060-7080-90Power (KW)0.751.541122Approximate shipping weight(Kg)145400100015002000Approximate shipping dimensions (mm)790x785x7901180x1140x12501970x1670x17502300x1800x22002400x2000x2300Main Features of Gold Centrifugal Concentrator:1) High recovery rate: Through our test, the recovery rate for placer gold can be 99% or more, for rock gold, the recovery rate could reach 97% when the feeding size is below 7mm.2) Easy to install: Only a small leveled place required. It's a full line machine, before starting it, we only need to connect the water pump and power.3) Easy to adjust: There are only 2 factors that will affect the recovery result, they are water pressure and feeding size. By giving proper water pressure and feeding size, you could get the best recovery effect.4) No pollution: This machine only consumes water and electric power, and exhaust tailing and water. Low noise, no chemical agent involved.5) Easy to operate: After finishing the water pressure and feeding size adjust, clients only need to recover the concentrates every 2-4 hours. (Depending on the grade of the mine)Detailed ImagesGold centrifugal concentrator shipmentGold centrifugal concentrator can be used not only for placer gold mining, but also for hard rock mining to recover the naturalgold, replacing amalgamation. It is also used to recover gold from the old tailings.1. Feed slurry pipe2. Concentrate cone3. concentrate discharge pipe4. Tailing pipe5. Fluidization water valve6. Water filterOur ServicePre-Sales Service* Inquiry and consulting support. * Sample testing support. * View our Factory.After-Sales Service* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas.Packing & DeliveryPackagingSize1970(L) x 1670 (W) X 1750 (H) Weight1000KGPackaging DetailsThe normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request.PackagingSize1970(L) x 1670 (W) X 1750 (H) Weight1000KGPackaging DetailsThe normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
>>
