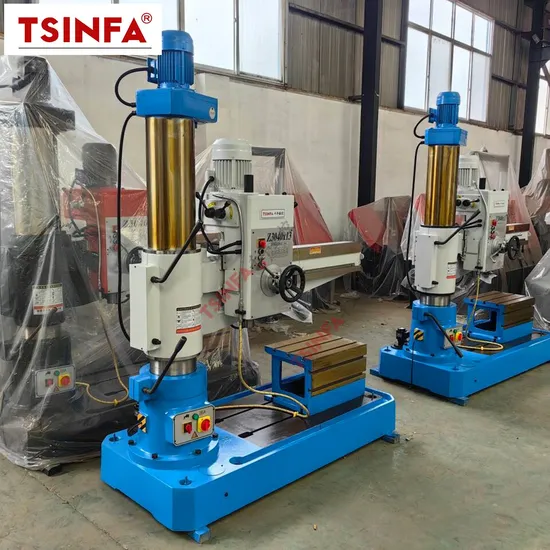

Z3040X13 with CE High Quality Radial Drilling Machine Vertical Mechanical Metal Drill

Product Description

Product Description

The hydraulic radial drilling machine Z3040 is our most popular radial drilling machines ,the hydraulic radial drilling machine Z3040has been exported to all over the world ,and it is satisfied by all of the customers .
Product Parameters

Specification	Unit	Z3032×10	Z3040×10	Z3040×13	Z3050×16
Max. drilling diameter	mm	Cast iron 32	Cast iron 40 Steels 32	Cast iron 40 Steels 32	Cast iron 50 Steels 45
Locking mode		mechanical	mechanical	mechanical	mechanical
Distance between spindle nose and working surface of base plate	mm	450-900	450-1000	600-1100	650-1100
Distance between spindle axis and column	mm	350-900	350-900	350-1100	360-1400
Spindle travel	mm	120	120	200	220
Spindle taper	morse	MT.4	MT.4	MT.4	MT.5
Range of spindle speeds	r.p.m	108-1000	108-1000	78-1200	78-1100 or 34-1200 (optional)
Number of spindle speeds		6	6	6	6 or 12 (optional)
Steps of spindle feeds		-	3	3	6
Radial rotation Angle	°	360°	360°	360°	360°
Main motor	KW	2.2	2.2	2.2	4
Lifting motor power	KW	0.75	0.75	1.1	1.5
N.W /G.W	KG	500/550	750/850	1300/1400	1700/1800
Overall dimensions	mm	1350*600*2000	1500*650*2100	1800*750*2400	2200*900*2430
Packing Size	mm	1450*700*2250	1600*750*2250	1950*900*2250	2280*1000*2380

Detailed Photos
Certifications
Inspection
Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers.
Packaging & Shipping
FAQ
Q1:How can l choose the most suitable machines ?Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .Q2: What's your main products of your company?Products cover metal cutting machine and metal forming machine two categories. Metal cuttinging machine tools are: CNC machining center, CNC lathe, manual lathe, manual milling, sawing machine, etc. Metal forming machine: hydraulic press machine.Q3: Where is our factory located? How can l visit there? Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.You are warmly welcomed to visit us.Q4. How do you transport it?Provide Transportation Solution DDP/CIF/FOB/FCAQ5: What's the Payment Terms ?T/T ,30% initial payment when order,70% balance payment before shipment .06: What's the MoQ?A: 1 set .(Only some low cost machines will be more than 1 set )We want to know:1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!2.lf need ClF Price, please kindly tell us the port of destination.

---
