Efficient Deburring Machine From China for Rubber and Plastic Parts

Product Description

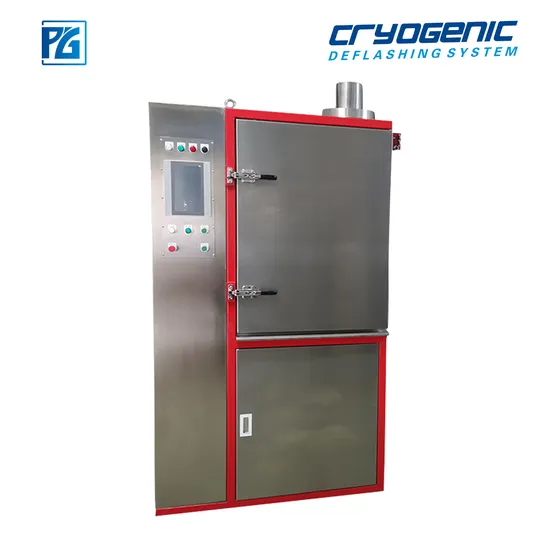

Introducing the Premier Automatic Rubber or Plastic Burr Cleaning Machine from a Leading Factory in China
Product Description As temperatures drop, rubber and plastic parts experience a transformation, becoming hardened, brittle, and crystallized, losing their innate flexibility. Under brittle temperature conditions, they can easily fracture when external force is applied. The flash of molded products, being significantly thinner than the actual product, becomes brittle more rapidly as temperatures decrease. Our advanced cryogenic deflashing machine capitalizes on this phenomenon by targeting flashes when they reach brittleness while the main product retains its flexibility. Utilizing high-speed projected special plastic media, it effectively eliminates brittle burrs without compromising the integrity of the product, ensuring pristine results.
FUNCTIONS
This versatile machine excels in removing flashes from small rubber and plastic components, including O-rings, gaskets, and a variety of other molded parts, providing unparalleled precision and efficiency.
Harnessing the power of cutting-edge cryogenic processing technology, the flashes are initially frozen before being precisely eliminated by high-speed projection media, such as Polycarbonate blast. This process significantly enhances the surface quality of molded rubber and plastic parts, delivering superior results.
SPECIFICATIONS

TECHNICAL INFORMATION
MODE	PG-60T	PG-80T	PG-100T/120T	PG-150T
MACHINE PHOTO
SIZE(L*W*H)	1000*1000*1950MM	1100*1200*2000MM	1200*1250*2200MM	1300*1350*2250MM
WEIGHT	700KG	850KG	1000KG	1500KG
POWER	Ac380v 50Hz	Ac380v 50Hz	Ac380v 50Hz	Ac380v 50Hz
ELECTRICTY	6Kw*3Ph	7Kw*3Ph	8Kw*3Ph	9Kw*3Ph
TEMPERATURE	-130 - +50ºC	-130 - +50ºC	-130 - +50ºC	-130 - +50ºC
PRESSURE	0.5-0.7Mpa	0.5-0.7Mpa	0.5-0.7Mpa	0.5-0.7Mpa
BARRAEL CAPACITY	60L	80L	100L or 120L	150L
EFFECTIVE CAPACITY	20L	30L`	40L`	50L`
WHEEL SPEED	3000rpm - 7200rpm	3000rpm - 7000rpm	3000rpm - 7000rpm	3000rpm - 7000rpm
COOLING MEDIA	Liquid Nitrogen	Liquid Nitrogen	Liquid Nitrogen	Liquid Nitrogen
OPETATION MODE	Touch Screen	Touch Screen	Touch Screen	Touch Screen
FRAME	SUS304 WITH SOME RED PAINT ON CERTAIN AREA
WHEEL DIAMETER	AL φ250mm	AL φ300mm	AL φ350mm	AL φ350mm
BLASTING SPEED	105.7m/s	123.3m/s	143.3m/s	143.3m/s

MACHINE INNER COMPONENT PICTURES
APPLICATIONS
A. Ideal for O-rings and various irregular rubber parts across different materials and dimensions.
B. Essential for micro electronic product components, ensuring high precision and quality.
C. Perfect for precision elastomeric parts, offering detailed flash removal.
D. Optimized for precision injection moulding plastic parts, enhancing finish and accuracy.
E. Suitable for R & D part runs, ensuring experimental integrity and accuracy.
F. Effective for die casting products, including zinc aluminum and magnesium alloy components, maintaining structural integrity and finish.
FEATURES
High Efficiency: This remarkable machine can take the place of 60-80 workers, effortlessly removing flashes and enhancing productivity.
High Precision: Capable of eliminating small and hardened flashes that are beyond the reach of manual removal, significantly improving product precision.
Cost-Effective: Offers a cost-saving advantage over manual processing, reducing overhead while maintaining exceptional quality.
