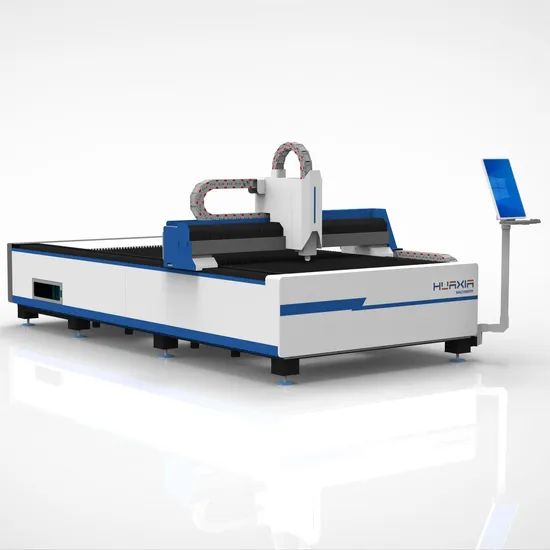

Precision CNC All Around Optical Fiber Laser Cutting Machine for Manufacturing

Product Description

Fiber laser cnc cutting machine for stainless steel
Features:
1, high rigidity of the machine tool bed, exclusive high temperature control standard furnaces annealing treatment, can guarantee the precision of the machine tool is stable for a long time does not change.
2,Imported original fiber laser generator with good beam quality, stable performance, no reflector lens, no need to adjust the optical path, basic maintenance free, service life can reach more than 10 hours;
3, fiber laser with high Electro-optical conversion efficiency, conversion efficiency of 30%, the power consumption can be saved greatly when working.
4, Adopts imported original guiding drive and servo motor, high precision, high speed;
5, Supported all kinds of graphic format or text instant cutting, simple operation, flexible and convenient.
6, Beautiful, smooth cutting edge,without deformation;
7, low energy consumption, energy saving and environmental protection, low power consumption, the power consumption is VAG with the power consumption of 1/3-1/5, cutting speed of YAG is more than three times;
8, without working gas lasers, air available for sheet cutting ;
9, fast cutting speed, low operation cost,investment recovery quickly;

Multi-Function choices
Only cut metal sheets Cut metal sheets and pipes Only cut metal pipes
Application area
Widely used for :sheet metal cutting, pipe (needs to add another tube cutting device):stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum steel, manganese, all kinds of alloy plate,rapid processing and so on.

Widely used in: Electrical power, auto parts, mechanical equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising decoration, car decoration, sheet metal chassis cabinets, hardware, lighting, display equipment, precision parts, all kinds of metal cutting industry etc.
Technical Parameters

Model	HX-3015-1000W	HX-3015-1500W	HX-3015-2000W
Laser type	fiber laser
Laser power	1000w	1500w	2000w
Machine power	≤8kw	≤12kw	≤15kw
Laser wavelength	1070-1080nm
Working area	3000mm×1500mm
X/Y/Z axis stroke	1530mm/3050mm/80mm
Cutting speed	Depends on the materials and its thickness
Repeated positioning accuracy	±0.02mm
Cooling type	water cooling
Aiming and positioning	red light
Voltage	3 phase 380V/50Hz/60A
Machine occupy space	9000*5000MM

Major Configurations:
Laser Generator
Fiber Laser Source, used IPG, Raycus, MAX, or JPT laser, with better performance, ultra-low noise, high stability and ultra-long lifetime for 100000 hours.
Cutting Table
Sturdy plate-welding and tempered heavy machine body, for cutting metal sheets.
Gantry: Aluminum alloy die pressure casting, watering integrated beam. Has the advantages of light and stable structure, energy saving, light weight, small inertia and good dynamic performance.
Cutting Head
Raytools or AU3TECH Fiber Laser Cutting Head with anti-crash function, good sealed, high pressure resistant, auto-tracking system and anti-crash and stop system can protect good cutting qualiy and longer the life of lens.
Water chiller
Water Chiller, dual-temperature, cooling for laser source and laser head.
Imported high performance reducer, gear and rack.
Control system
Control panel, you can design the patterns you want here. Or you can import patterns via USB flash drive.
Equip with Cypcut, NC-Studio (Weihong) , or AU3TECH control system, Chinese top brands. Integrated special function module for laser cutting control, powerful, good man-machine interface and easy operation.
Packing and shipping
