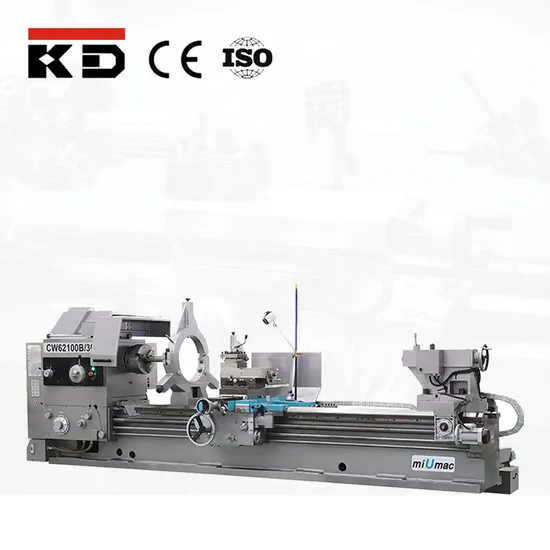

Large Sized Bore Cutting Manual Lathe Cw62100b

Product Description

Product Features
1. Precision ground and hardened bed ways, long life and low noise.
2. The spindle is supported with precision roller bearings. The spindle system is high in rigidity and accuracy.
3. Rapid feed structure is available on apron.
4. Clutch in headstock makes the lathe start smoothly and brake quickly.
PRODUCT SPECIFICATIONS

MODELS	CW6291B	CW62100B		CW62110B
CAPACITY
Max. swing over bed	Ф910mm	Ф1000mm		Ф1100mm
Max. swing over carriage	Ф580mm	Ф580mm		Ф680mm
Max. swing over gap	Ф1100mm	Ф1200mm		Ф1300mm
Effective length of gap	400mm
Width of bed	600mm
Max. length of workpiece	1.5/ 2/ 3/ 4/ 5/ 6/ 8m
Max. turning length	1.35/ 1.85/ 2.85/ 3.85/ 4.85/ 5.85/7.85 m
Max. weight of workpiece	2000kg
SPINDLE
Spindle nose	D11
Spindle bore	Ф105mm
Taper bore of spindle	Metric Ф120 1:20
Steps of spindle speed	4 STEPS
Range of spindle speed	10~630rpm		5~645rpm
FEED RANGE OF TOOL POST FOR PER REVOLUTION OF SPINDLE
Number of longitudinal feeds	64
Range of longitudinal feeds (1:1)	0.1~1.52mm/r
Range of longitudinal feeds (16:1)	1.6~24.3mm/r
Number of cross feeds	64
Range of cross feeds	Half of longitudinal feeds
RAPID TRAVEL
Longitudinal	4000mm/min
Cross	2000mm/min
THREADING
Metric pitch threads	1~240mm/ 50
Whit-worth threads	14~1TPI/ 26
Module threads	0.5~120M.P/ 53
D.P.Threads	28~1DP/ 24
TAILSTOCK SLEEVE
Taper bore	M.T.NO.5
Max travel	250mm
External diameter	Ф100mm
OTHERS
Vertical distance from spindle center to installing basis	33mm
Max travel of compound rest	200mm
Swing angle of tool post	±90°
Max travel of cross slide	500mm		570mm	620mm
Size of tool shank	32×32mm
Main motor power	11kw
Rapid feed motor power	1.1kw
Coolant pump power	90w
3m machine overall dimension	5155x1450x1630mm		5155x1450x1685mm	5155x1450x1735mm
3m machine net weight	7050kg		7550kg	8050kg

---
