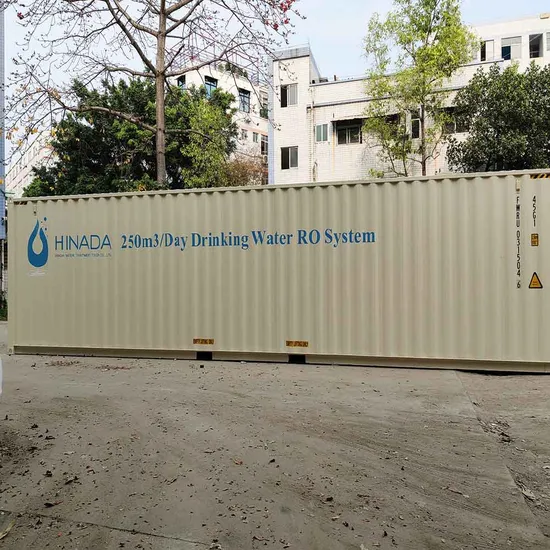

250m3/Day Integrated Drinking Water RO System in Containerized

Product Description

250m3/Day Integrated Drinking Water RO System In ContainerizedIndustrial Reverse Osmosis Systems offer one of the best ways of producing clean water for your drinking water plant. Unlike other water filtering solutions, these systems are very efficient, being capable of removing up to 95 - 99% of the contaminants floating in the drinking water. And Industrial Reverse Osmosis System designed to convert high TDS saline content water ( Underground Well Water, Seawater, city water, or Industry Brackish water ),to drinking water or industry application purpose.
Hinada provide the truly integrated solution to water and wastewater project, from designation, supplying, installation support and commissioning to training.
Key Feature of the RO Technology
♦ Feature 1:
Safe, affordable and sustainable Clean Water RO Technology
High quality effluent, Turbidity of output water: ≤ 0.2NTU
Suspended Matter >2um, 100% removal
♦ Feature 2:
Lower footprint /Space
Easy installation, Easy maintenance.
♦ Feature 3:
Low energy cost, power consumption around: 0.3kw / 1000Liters water
♦ Feature 4:
Automatically Controlling + Touch Screen + Internet
RO Membrane Model: HND-BW-8040F
Permeate Flow:11000 gpd(40m3/d)
Salt Rejection: 99.4%--99.7%
Configuration: Low Fouling Spiral Wound
Membrane Polymer: PA (polyamide) Thin Film Composite
Membrane Active Area:400 ft2 (39.7 square meter)
Feed Space: 34mil with biostatic Agent High Pressure Pump
Model: CDM20-13
Flow Capacity: 20m3/hour
Rated Head: 140m
Motor Power: 15KW/H
Material: SUS304
Rotation Rate: 2880rpm
Sealing: Double Mechanical Seal EPDM
Insulation grade: F
Protection Class: IP68

Name	Sand/Carbon Filter	Soften Filtration System
Item	Specification	Specification
Material	FRP	FRP
Dimension	Ø1000X1850 Vessel	Ø1000X1850 Vessel
Control Valve	Automatically Control Valves	Automatically Control Valves
Working pressure	0.3MPa-0.4MPa	0.3MPa-0.4MPa
Fills	Silicon Sand + Activated Carbon	lon Exchange Resin
Working Speed	20m/H	20m/H
Backwash pressure	0.2MPa	0.2MPa
Backwash capacity	18m³/Hour	18m³/Hour
Fills replace frequency	Every 10-----20 Months	Every 12-----24 Months /replace it, 1 time/Week regeneration it
Height of filtration layer	1.2m	1.2m
Pipeline	UPVC Pipeline 1.6MPa	UPVC Pipeline 1.6MPa

RO System Application: *Drinking water purification
* Water and wastewater purification
* Food industry
* Maple syrup production
* Hydrogen production
* Reef aquariums
* Window cleaning
All our industrial reverse osmosis Plants are carefully customized and configured to suit the individual requirement of the output water, which varies from normal drinking application to the specific usage, such as food Processing, pharmaceuticals and boiler feeding requirement. This is done through an in depth and complete chemical analysis of the feed water available to us in specific location.

---
