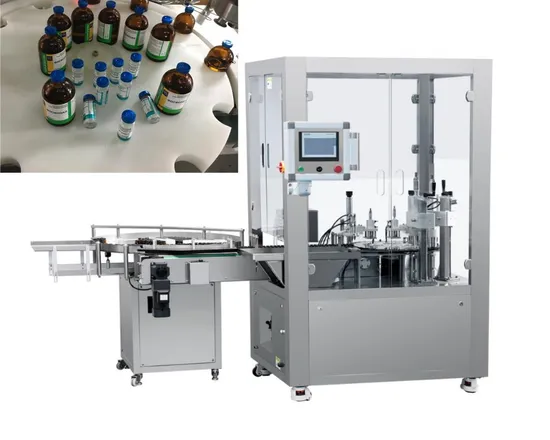

Auto Glass 5ml 10ml 15ml Liquid Powder Glass Vial Bottle Filling Machine

Product Description

1. Introduction:
1.1. This monoblock consists of bottle inlets 2-peristaltic-pump filling, auto stopper feeding & pressing, and auto cap feeding-closing system; it can auto finish bottle-in, filling, press rubber plug & closing caps, widely used in industries like food, chemicals, pharmaceuticals, cosmetics,etc.
1.2. It adopts the PLC program system to control, equipped with touch screen man-machine interface system, it's convenient and easy to operate.
1.3. Monoblock system makes the machine small & delicate; adopting graduator to position bottles, it's much more stable, easier to change & adjust for bottles of different sizes.
2. Features:
2.1. Adopting peristaltic-pump filling, 2-nozzle filling(dual work stations), with high filling precision , fast filling, & easier to wash & maintain.
2.2. Electric & pneumatic parts adopting the world-famous brands, it has the incomparable advantages of low failure rate, stable and reliable performance as well as the surprising longevity.
2.3. With sensors & bottle-dialing disk(graduator) to position bottles, very stable; also can be easy to change bottle specifications if needed, with large adjusting scope
2.4. Capping force can be adjustable, loose & tight easily controlled, no damage to bottles & caps, can be easily adjusted to meet different caps.
2.5.With electrically-vibrating hopper unscrambling & feeding caps, reliable & stable; with high cap-feeding rate.
2.6. PLC control system, frequency conversion; no filling without bottles; auto counting, with high degree of automation.
2.7. Made based on CE standards, safety, stability & durability.
2.8. The machine touch with material is sus316, and other part is all made of SUS 304. Meet GMP standard. Delicate in appearance.
3. Technical parameters:

Filling nozzle	2, 4
Pressing head	1, 2
Capping head	1, 2
Filling scope	5ml--150ml (Can be customized)
Bottles caliber	10mm-40mm (Can be customized)
Capacity	800-1000BPH(100ml)
Filling precision	≤±1%
Capping pass rate	99%
Air pressure	0.4~0.6MPa
Voltage	AC220V 50Hz 1P
Power	1.5kw
Noise	≤70dB
G.W.	600 kg
Dimension(mm)	L2500×W1200×H1750

The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller's engineer. We will send some free set of spare parts for you change it.
Payment terms:
40% deposit by T/T before production, 60% balance should be paid by T/T before shipment,we also accept L/C.
Package:
Standard wooden Case Packing
Shipment terms:
We usually take FOB, EXW,CIF,CNF.
