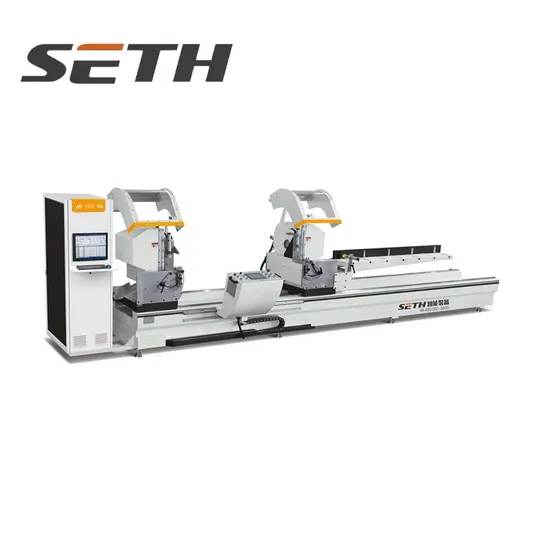

CNC Precision Cutting Any Angle Saw for Aluminum Profiles

Product Description

Jinan SETH Intelligent Equipment Co.Ltd. Product Description
CNC precision cutting any angle saw for aluminum profiles
1) cutting industrial aluminum profiles, aluminum doors and Windows,curtain wall materials,PVC and wood cutting.2) numerical control technology and can complete automatic positioning cutting of different sizes of profiles.3)Selected high-quality aluminum carbide saw blade, outer diameter up to 500,high wire speed, high processing accuracy.4) CNC transmission adopts high standard rack and pinion, high transmission accuracy,accurate positioning, stable work.5) High precision spindle ensures stable rotation of saw blade and effectively improves surface quality of workpiece.6) Gas-liquid damping cylinder to achieve uniform feed speed regulation, smooth movement.7) The use of micro spray cooling device.8)Automatic head rotation, bidirectional positioning, clamping,single head can work independently.
Automatic opening and closing protective cover make operation safer.9)The saw blade automatically swings into 22.5° and 157.5° angles, automatically opens and closes the protective cover, so that the operation is safer.10) Saw blade from back to front, saw cutting profile is more safe and reliable,and saw cutting height and saw cutting width are very large.
11) Selection of high quality aluminum special carbide saw blade, outer diameter up to 550, high wire speed, high processing precision.
12) CNC transmission adopts high standard rack and pinion, high transmission precision, accurate positioning, smooth work.
13) The high precision spindle makes the saw blade rotate stably and effectively improve the surface quality of the workpiece.
14) Gas-liquid damping cylinder to achieve uniform feed speed regulation, smooth movement.
15) Micro spray cooling device.
16) Head automatic rotation, bidirectional positioning, clamping, can work independently. Automatic opening and closing shield,
Make the operation safer.
17) Saw blade automatically placed at 45° and 90° Angle, automatic opening and closing protective cover, making the operation safer.
18) Saw blade from back to front, sawing profiles more safe and reliable, and sawing height and sawing width are large.
19) Absolute value servo upgrade memory function, boot without callback.
20) With printer function, support USB data import function.

Power	380V 50HZ
Saw head motor	2×3.0KW/ 2840r/min
Working pressure	0.6 ~ 0.8mpa
Air consumption	60L/min
Saw length	Max6000mm MIN360mm
Saw width	Max 175mm
Maximum cutting slope	45°135×180mm 90°135×230mm
Sawing Angle	22.5°~157.5° any angle
Feed speed	stepless speed regulation 0-3m/min
Saw blade specifications	ø500 × ø30 × 4.4× Z120
Dimensions	7800×2040×1500 mm
Weight	2500 kg
Repeat constant length accuracy	≤ 0.05mm
Profile cutting Angle tolerance	±3 '
Cutting plane flatness	≤ 0.1m
Roughness of cutting surface	Ra12.5μm

Detailed Photos

Relative Products



Company Profile
Jinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,upvc window and door machine,curtain wall and hollow glass processing machine equipment that can meet the needs of different clients, and can also be customized according to customer requirements of different grades of products.
Our company has rich experience in production and more than 10 national patents and passed ISO9001,SGS,CE certifications, excellent product design and development engineers, skilled production engineers, experienced production management team and after-sales service that providing you with a strong guarantee.
We have all kinds of equipment processing workshop, assembly workshop and quality inspection center, can independently realize the design of equipment, processing,assembly, test one-stop flow operation, to ensure the excellent quality of equipment.
our main products including aluminum&uPVC profile machining center, saw machine,milling machine,welding machine,corner cleaning machine.corner crimping machine,punching&drilling machine.
Customer is the foundation, the company in line with the " quality first, customer first" principle,
Please join hands with SETH to lead intelligence.
Certifications
Packaging & Shipping
FAQ
Q: Is SETH a manufacturer or trading company?
A: We are the manufacturer and seller at the same time.SETH is one PROFESSIONAL window machine company in china.
Q: SETH's main products?
A: Aluminum window machines: CNC cutting center, double miter saw, end milling machine,
CNC milling machine, aluminum punching machine, end milling machine, copy router and c
orner connector saw, etc; Wood window machines: wood saw, wood window frame machine,
vertical & horizontal drilling machine, dovtail making machine, wood planner, and tenon making machine, etc.
Q: SETH's after-service?
A: 1option:
we have engineers to install the machines and train your workers.
Our customers should pay for our engineer's round trip tickets, board and lodging during testing and teaching,subsidy USD70 per day.
2 option:
On-line Service and All documents and videos for Installation and train operation for free.(For Optional)
