Hydraulic Press Aluminum Cookware Pot Making Machine Punching Machines Four Column Punching Press Machine

Product Description

Product Feature

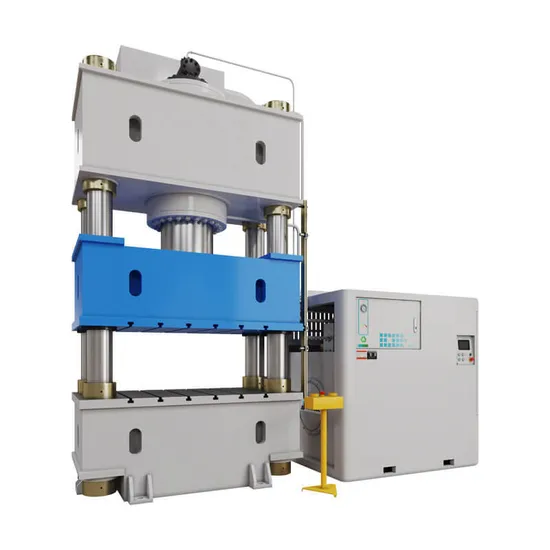

Four-column hydraulic press machine adopts three beams and four column structure, the hydraulic system adopts a cartridge valve oil circuit, and the electrical system adopts a relay or PLC control circuit, with adjustment and semi-automatic operation mode, the whole machine structure is a simple, compact, economic and reasonable, reliable action, long service life, small hydraulic impact, reduce the connection pipeline and leakage.
·We have designed the Single-Column Hydraulic Press with different power ranges, from 25 to 400 tonnes.
·Specifically designed to perform work involving deep drawing, stamping,die-cutting, forming, etc.
·The latest generation series of hydraulic presses now features a wide range of uses including the possibility of incorporating these machines in automatic production lines.
Details Images
Its working pressure, pressing speed, and stroke range can be adjusted within the specified range according to the process needs, and two types of the process can be realized: constant pressure and constant range. In the case of fixed-pressure forming, there is a pressure-holding delay and an automatic return stroke after pressing. The table is equipped with an ejector device in the middle, which can be used as a hydraulic pad for the forming process of drawn parts in addition to ejecting the products.
Applications
·Auto parts: automobile body covering parts, braking, fuel tanks, chassis, axle case, bumper
·Household appliances: washing machine, TV, refrigerator, air conditioning, rice cooker, and other parts
·Kitchenware: sink, tea set, and other kinds of containers.
Stress Analysis & Finite Element Analysis
The CAE software SOLIDWORKS is used as the method to analyze the linear static construction, stress, and deformation for press break and laser cutting machine frames. So for complicated structures, highly complex loadings, transient modeling, and a combination of the above, FEA makes sense.
Electric Installation And Safety
The control panel features a switch enabling the user to select the desired type of work in a manual, semi-automatic, or automatic position and a switch to select either the fast speed or slow speed. Electrical and hydraulic maneuvers are redundant and self-controlled. They incorporate an additional safety block and self-control devices for maneuver and safety. It includes the verification and certification of the correct operation and the safety distance for the photocells.
Product Parameters

Specifications	Unit	JH21-25	JH21-45	JH21-60	JH21-80	JH21-100	JH21-125	JH21-160	JH21-200	JH21-250	JH21-315	JH21-400
Nominal Capacity	KN	250	450	600	800	1000	1250	1600	2000	2500	3150	4000
Nominal	mm	3	4	4	5	5	6	6	6	6.5	7	8
Slide Stroke	mm	80	120	140	160	160	180	200	220	220	220	250
Slide Strokes Per Minute(Fixed)	Times/min	100	80	70	60	55	50	45	45	30	30	30
Slide Strokes Per Minute(Variable)	Times/min	60-120	50-95	45-85	40-75	35-65	35-65	30-55	30-55	20-35	20-35	20-35
Maximum Die Set Height	mm	250	270	300	320	335	350	400	450	500	500	550
Die Height Adjustment	mm	50	60	70	80	90	90	100	110	120	120	120
Throat Depth	mm	210	225	270	310	330	350	400	430	450	450	490
Distance Between Uprights	mm	450	515	560	610	670	670	736	910	980	980	1050
Slide Bottom Size(LxR)	mm	360	410	480	540	620	620	700	880	950	950	1020
Slide Bottom Size(FxB)	mm	250	340	400	460	520	520	580	650	700	700	750
Shank Hole Size (Dia)	mm	40	50	50	50	70	70	70	70	70	70	70
Shank Hole Size (Depth)	mm	65	60	70	65	90	90	100	100	130	130	130
Bolster Size(LxR)	mm	720	825	930	950	1060	1100	1175	1390	1500	1540	1700
Bolster Size(FxB)	mm	400	440	520	600	640	680	760	840	880	880	950
Blanking Hole diameter	mm	150	150	150	180	180	200	220	250	270	270	290
Bolster Thickness	mm	80	110	130	140	145	155	165	180	190	190	210
Bolster Surface Height	mm	780	800	900	900	900	900	900	1000	1000	1000	1100
Overall Dimensions(FxB)	mm	1500	1585	1540	1765	2000	2040	2305	2600	2660	2720	2850
Overall Dimensions(LxR)	mm	945	1075	1200	1200	1300	320	1420	1540	1640	1680	1750
Overall Dimensions(H)	mm	2120	2390	2570	2725	3010	3035	3215	3800	3850	3850	4140
Distance Between Foundation bolts(FxB)	mm	980	1075	1100	1210	1365	1430	1665	2020	2100	2140	2185
Distance Between Foundation bolts(LxR)	mm	690	760	840	920	1020	1040	1140	1360	1460	1500	1570
Motor (Power)	KW	3	5.5	5.5	7.5	7.5	11	15	18.5	22	30	37
Weight (Approximate)	Kg	2450	3550	5150	6450	8650	9550	13600	19200	23200	26600	29500
