EPS Foam Insulation Board Production Line

Product Description

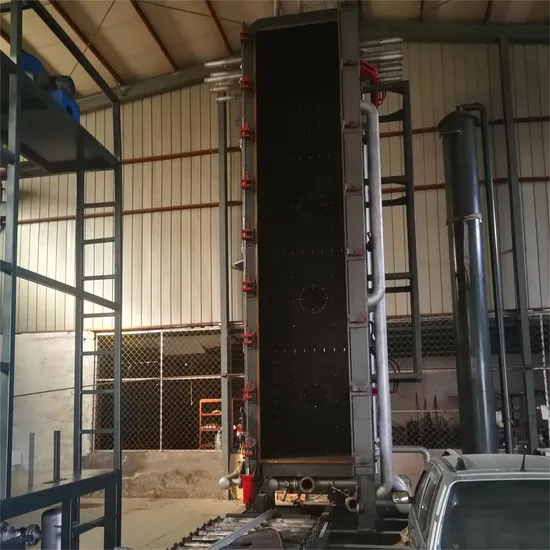

We supply EPS production line for foam insulation sheets,all line includes pre expander,EPS molding machine,EPS cutting machine,steam boiler,vaccum tank,recycling machine etc.
The automatic batch EPS pre expander machine turns eps raw material (expanded polystyrene) to big and light foam beads through steam heating. With PLC and touch screen to realize full automatic production for feeding, heating and ejecting foam beads
1.Steam system
Use precise pressure reducing valve and PID(proportional valve system) to keep constant steam.
2.Pressure control
Foaming machine's pressure sensor works with multi-valves venting system, ensuring stable pressu Pre-expanded polystyrene re inside expansion chamber.
3.Temperature control
Adopts temperature sensor and compressed air proportional valve to keep accurate expansion temperature, suitable for high density expansion.
4.Material level control
Use vibration sensor to control material level.
5.Material filling system
With batch controller and weighing scale to ensure same input weight every batch.
6.Electrical control
PLC and touch screen, electronic parts, valves etc. are all of famous brand at home and abroad
Advantage:
-1 year quality guarantee, spare part for free
-2 engineers go to install EPS production line
Machine Operation
Installation Instructions
Machine Parameter

Model No.	Barrel Diameter	Barrel Height	Machine Power	Machine Height	Capacity 20kg/m3 Density
150	1500mm	2000mm	22.5kw	4.3m	1 ton/h
160	1600mm	2300mm	22.5kw	4.5m	1.2 ton/h
180	1800mm	2300mm	26.5kw	5.0m	1.6ton/h
200	2000mm	2600mm	26.5kw	6.5m	2.2 ton/h

Machine Advantage
More Machine Models
Company Profile

---
