Bmxp3420102 Processor, Modicon M340, Max 1024 Discrete, 256 Analog Io, Modbus, PLC Module

Product Description

A PLC (Programmable Logic Controller) is a computing device, like your PC or smart phone, that is used to monitor and control the operation of machines and equipment used in utilities and industry. The PLC monitors inputs (i.e. voltages), and an internal computer makes decisions using logic to send commands to outputs (i.e. relays), that in turn control the machines and equipment. A programmable PLC is one that can be made to do a specific task. All PLCs today are programmable, but they range from basic to complex types. PLCs can also be monitored by other computer applications like SCADA or cloud-based apps. Recent advances in PLCs allow for much greater connectivity and integration with a centralized management system. Our next-generation PLCs offer built-in cybersecurity, connectivity to multiple devices or the cloud, and processing power needed to handle big data analysis.

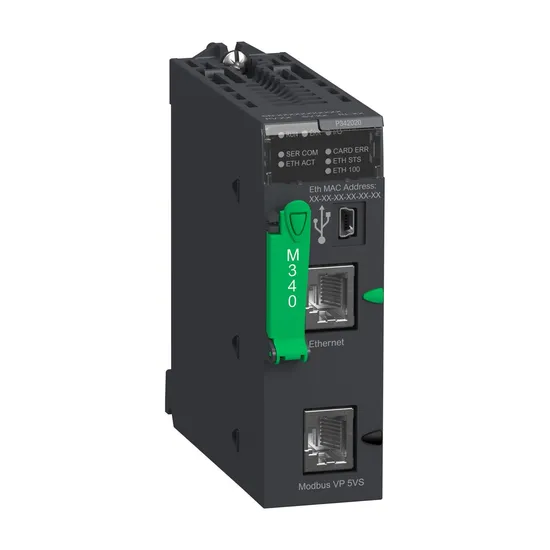

This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 1 rack configuration, 36 application specific channels and 11 slots. It is a processor module with a current consumption of 72mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication processor module interfaces are 2 Ethernet modules and 4 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 1024 multi-rack configuration discrete I/O processor capacity and 256 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports 128kb data, 2048kb, 1792kb program internal RAM memory capacity. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Sch/nei/der Electric and third party devices.
Unit Type of Package 1 Number of Units in Package 1 Package 1 Height Package 1 Width Package 1 Length Package 1 Weight Unit Type of Package 2 Number of Units in Package 2 Package 2 Height Package 2 Width Package 2 Length Package 2 Weight

PCE

1

5.400 cm

11.500 cm

12.400 cm

248.000 g

S02

15

15.000 cm

30.000 cm

40.000 cm

4.058 kg

---
