400W 600W 1kw Wind Power Turbine for Home System (Small Wind Turbine Generator 200W--10KW)

Product Description

Product Description
Lowest cut-in wind speed
1 m/s for power production
No noise, no vibrations
(sound level< 25 dB at 7 m/s from 10 m distance)
Adaptable for hybrid solutions
with solar and other sources of energy
Permanent power supply
from wind/solar and continuous battery charging
Technically advanced Maglev generator
No mechanical friction
Best price-performance ratio All weather resistant
(rain, ice, heat, salt, sand)
Independent of wind direction
Suitable for roof fixation
Maintenance-free
Safety for people and nature

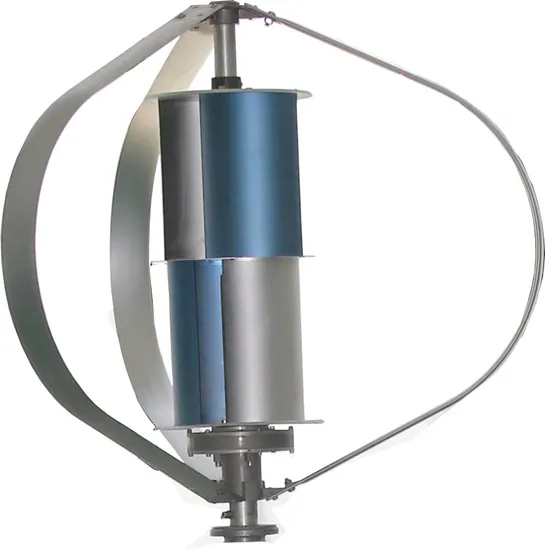

Vertical axis wind turbine
We can supply Vertical Axis wind turbine from 200W-10KW. The main feature is as following:
1. CE certificated
2.3 years warranty
3. Low start wind speed
Features
1. Utilize a new aerofoil vertical axis wind wheel and magnetic suspention structure
2. The start-up wind speed is very low
3. The wind energy coefficient is very high
4. The anti-wind capability is high
5. The weight of generator is very light
6. Operation is stable
7. Have no noise
8. With careful anti-corrosion treatment and good sealing
9. Maintenace free
10. Long service life
Applications
• Domestic and commercial buildings
• Agriculture
• Remote areas
• Street lighting
• Traffic signals
• Telecommunication
• Offshore applications
• Boats and ships
• Camps
• Off/On-grid power supply
Technical Data

PARAMETER	VERTICAL WIND TURBINE MODEL NUMBER
	WKV-400
Rated Power	400w
Size(Height / Diameter)	1.2/1.06(M)
Blades Material	aluminum alloy
Start-up Wind Speed	1m/s
Minimum Power Generation Wind Speed	2m/s
Cut-in wind speed	2.5m/s
Rated Wind Speed	12m/s
Cut out Wind Speed	15m/s
Survival Wind Speed	65m/s
Generator Type	AC, 3 phases
Controller Output Voltage	12\24V
Controller Braking System	3-Phase short circuit by NFB brake
Ambient Temperature	. -30~50 °C

Power Curve
Optional Color
products details

Package and Delivery
Projects
Certification
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed
4. Solved the problem with you during using our products
