Double Horizontal Shaft Compulsory Mixer

US$10,000.00-40,000.00 1 Set (MOQ)

Basic Info.

Model NO.
JS750
Machining Process
Brick Production Line
Structure
Spiral Type
Productivity
35m²/h
Feeding Height
1600 mm
Certification
ISO9001: 2000, CE
Condition
New
Color
White
Dimension in Working Condition(mm)
4950*3636*6530
Frame Dimension(mm)
4150*3636*2500
Diameter of Aggregate(mm)
60
Mixing Blade(PCS)
14
Speed of Mixing Blade(R/Min)
32.6
Transport Package
Film Wrapped and Bare
Specification
6.8T
Trademark
S. L Machinery
Origin
Quanzhou, China
Production Capacity
30000sets/Year

Product Description

Product Introduction

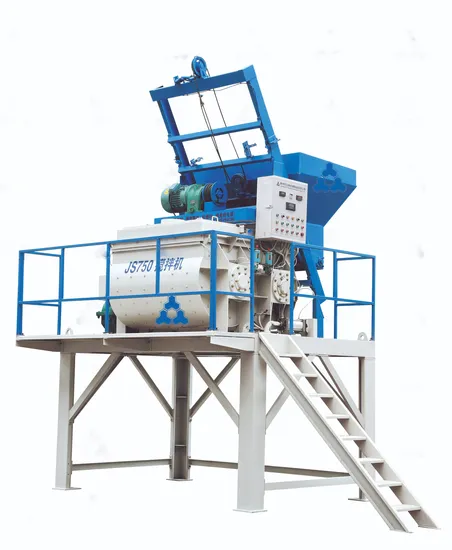

JS750 Double Horizontal Shaft Compulsory Mixer
Technical Parameters
Type LJB350 JS500 JS750 JS1000
Charging Volume(L) 560 800 1200 1500
Discharging Volume(L) 350 500 750 1000
Productivity(m³/h) ≥17.5 ≥25 ≥37.5 ≥50
Speed of Mixing Blade(r/min) 35 35 32.6 32.6
Mixing Blade(PCS) 3 14 14 16
Height of Unloading Material(mm) 1200 1500 1600 2080
Net Weight(T) 2 4 6.8 9

Technical Features
★ Equipped with multiple shaft end seal protection devices and wind pressure seal protection devices to effectively prevent leakage;
★ Unique mixer monitoring system can monitor the working status of the reduction box, discharge pump, and electric lubricating oil pump at any time;
★ Equipped with a pressurized upper cover water discharge system, the spraying area is larger and the water discharge is more uniform
★ Equipped with a DC24V centralized lubricating oil pump for concrete mixers, the running time can be programmed independently, it is waterproof, dustproof and has excellent performance;
★ Equipped with an enhanced reduction gearbox, and processed with high-precision technology, it has strong load capacity and longer service life;
Equipped with high-quality high-wear-resistant alloy stirring arms, the service life is 3-5 times that of ordinary stirring arms;
★ Optional reduction gearbox filter cooling system, oil-free water-cooled shaft end sealing system, camera system, high-pressure cleaning system, weighing protection system, microwave moisture measurement system
Notes : The above JS750 Mixer can be formed into mixing plant if combined with the batching machine , also can be used as engine of mixing plant . it is suitable for all kinds of prefabricated and construction project . The production and mixer of the concrete brick. The mixer is capable of mixing dry hardness concrete , plasticity concrete , fluidity concrete , soft skeletal material and all kinds of motar. The blades are screw layout , so it has the advantages of short mixing time, even mixing to meet the requirements of different construction sites.
Mixer Interior Display
