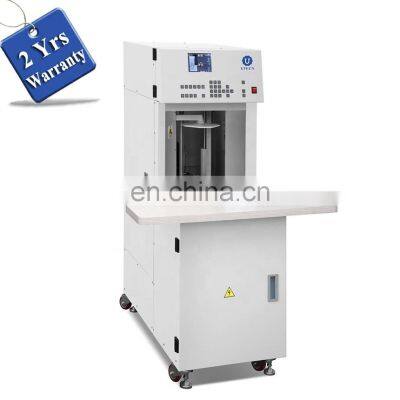

High Speed Automatic A3 A4 notebook paper card board Counter and label marking Machine
Videos
Video demonstration only for reference
Video: /watch?v=31ZBZMBhGpI
Product Description
Features:
1, High speed automatic paper sheet counting and paper label inserting machine equipped with 5.6-inch color screen computer and reliable servo motor control system.
2, Wide range of paper within the parameter inside the chart can be counted automatically. However some special paper depends on the actual situation.
3, The machine has features to meet the needs of different users besides the standard paper counting mode, there is the random paper label inserting function,which can mark for different quantity of paper. It can edit and save 99 program groups where each of them can be edited in a different number of papers;
The paper quantity detection function is to check whether the predetermined number and actual number matches or not;
The specified number counting function is to sort out the required number of paper from the paper pile.
4, Automatic self diagnostic function let operater know from a clear error message displays on the screen which shows whether the machine faut is caused by their own operating mistakes, or by its abnormal operating conditions.
5, Easy to exchange the paper inserting strap.
Parameters:
Paper thickness range
| 22-230GSM (Carbon paper, offset printing paper, coated paper, etc.)
|
Paper size
| Min.100X150mm,Max 546X788mm
|
Paper stacking height
| 300mm(Max)
|
Power Supply/voltage
| AC220±10V,50Hz
|
Motor
| 0.4KW
|
Collecting table width
| 600X600mm
|
Collecting table height
| 760mm
|
Machine size
| 900*1080*1500MM
|
Machine weight
| 230kg
|
label for paper in pile
| Width 6mm, Length 100m
|
consumed power ;
| 600W
|
Configulation:
1, America ARM Core CPU Frequency:400MHZ
2, SDRAM:SAMSUNG DDR2,64MB
3, FLASH ROM:SAMSUNG 64MB
4, Listeppingmoto china
5, TFT:Foxconn 5.6 Inch
6, KEYPAD:OMRON
7, Paper Count Motor:FUJI Servo Motor
8, Air Pump Motor:chinakorea
9, IF Sensor:OMRON
10, Hall Sensor:OMRON
11, Switch Power:Taiwan Meanwell
12, Cable:America TE
Detailed Images
Operation Panel
Side Structure of Paper Sucking Unit
Front Structure of Label Cutting Unit
Side View of Japan Fuji Motor
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
