V730A miniature tri-axial accelerometer, IEPE vibration senso

Product Details

Product Description

Product Description

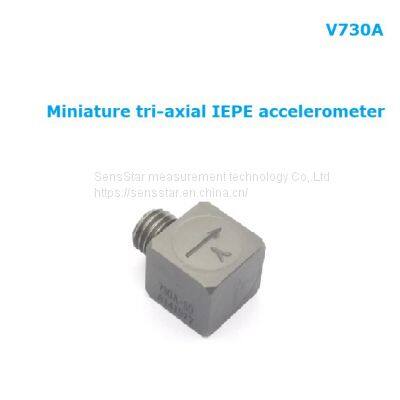

V730A miniature tri-axial accelerometer, IEPE vibration sensor:
Model 730A is an IEPE triaxial accelerometer designed for miniature applications. The accelerometer uses shear piezo electronical element which provides a wide operating frequency range. The IEPE sensor combines outstanding crystals and low noise integral microelectronics to achieve very low sensitivity variation over the operating temperature range, compared to other sensing element designs. The shear element technology also ensures high immunity to base strain errors. The accelerometer uses a welded titanium construction for low mass and a light weight 4 pin connector, or integral cable assembly for lower mass and wider frequency operation. Excellent frequency response, both amplitude and phase, provide the user with a triaxial accelerometer ideally suited for structural and component testing, drop tests and general laboratory vibration work. The miniature cube size of this accelerometer enables the test engineer or technician to measure the accelerations of three orthogonal axes of vibration simultaneously on lightweight structures. All variations provide reliable measurements and long-term stability.
Feature / Application
• Tri-axial measurement
• Flexible cable exit
• Adhesive or screw mounting
• Hermetic sealed
• Annular shear mode
• Wide frequency response
• Mounting ground isolated

---
