Drill press in machinery Z5040C hydraulic drilling machine pdf

Product Description

Small Metal Cheap Z5040C Vertical Drilling Machine Product Description
Product Parameters
Product main technical Specifications:

ITEM	Z5032C	Z5040C	Z5045C
Max.drilling capacity	32mm	40mm	45mm
Spindle taper	M.T.3 or R8	M.T.4	M.T.4
Spindle travel	130mm	130mm	130mm
Step of spindle speed	6	6	6
Range of spindle speed 50Hz	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Min.distance from spindle axis to column	283mm	283mm	283mm
Max.distance from spindle nose to worktable	700mm	700mm	700mm
Max.distance from spindle nose to stand table	1125mm	1125mm	1125mm
Max.travel of headstock	250mm	250mm	250mm
Swivel angle of headstock(horizontal /perpendicular)	360°/±90°	360°/±90°	360°/±90°
Max.travel of worktable bracket	600mm	600mm	600mm
Table size	730×210mm	730×210mm	730×210mm
Size of stand worktable of avaliability	417×416mm	417×416mm	417×416mm
Forward and afterward travel of worktable	205mm	205mm	205mm
Left and right travel of worktable	500mm	500mm	500mm
Vertical travel of worktable	570mm	570mm	570mm
Motor Power	1.1kw	1.1kw	1.5kw
speed of motor	1400rpm	1400rpm	1400rpm
Net weight/Gross weight	430/500kg	432/502kg	435/505kg
Packing size	1850x750x1000mm	1850x750x1000mm	1850x750x1000mm

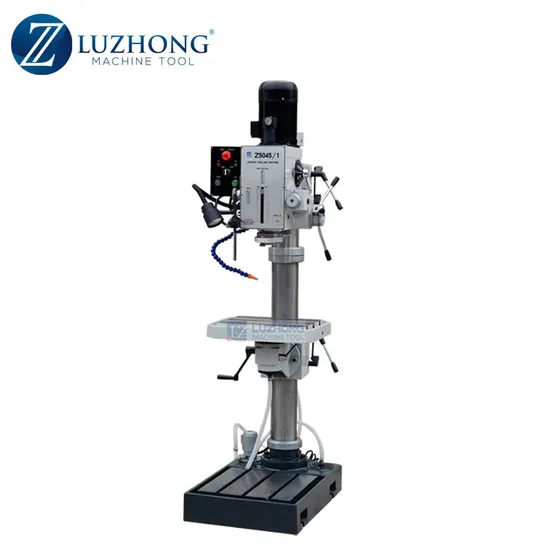

Detailed Photos

Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
