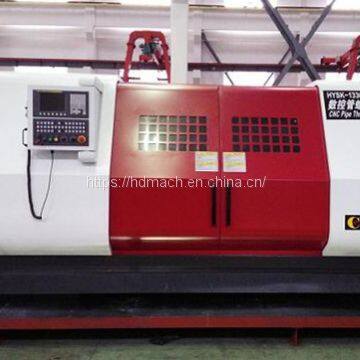

HYSK-1330 CNC pipe threading lathe is two coordinates continuous control CNC pipe threading lathe, flat bed machine, especially suitable for turning casing pipe thread. The CNC system is FUNAC0i Mate-TD
No.
| Item
| Unit
| HYSK-1330
|
1
| Max swing diameter over bed
| mm
| ∮680
|
2
| Pneumatic chuck diameter
| mm
| ∮630
|
3
| Pneumatic single jaw travel
| mm
| 20+7
|
4
| Working range of diameter
| mm
| 125～280
|
5
| Working range of length
| mm
| 1500
|
6
| Max swing diameter over carriage
| mm
| ∮380
|
7
| Spindle hole diameter
| mm
| ∮300
|
8
| Spindle rotate speed
| rpm
| 25～400
|
9
| Main motor power
| kW
| 15
|
10
| Max. stroke of X axis
| mm
| 400
|
11
| Max. stroke of Z axis
| mm
| 1000
|
12
| X/z servo motor
| N.m
| 22/22
|
13
| Turret type
|
| 4 position
|
14
| Weight
| kg
| 9600
|
15
| Dimension(LXWXH)
| mm
| 3200×1900×1800
|
