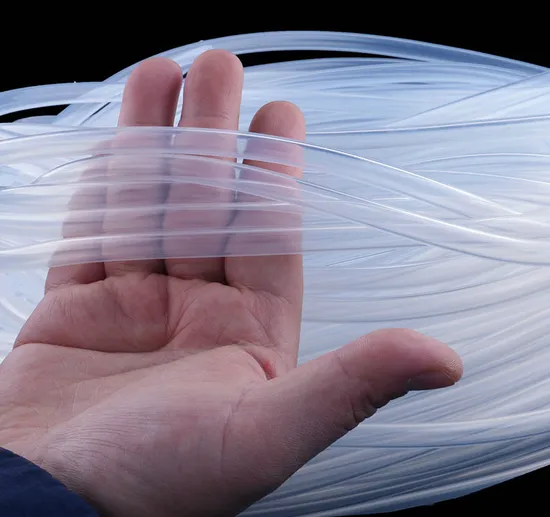

Platinum Cured Translucent Food Grade Silicone Hose, Silicone Tube, Silicone Pipe, Silicone Sleeve Made with 100% Virgin Silicone Without Smell (3A1003)

Product Description

Platinum Cured Food Grade Silicone Hose, Silicone Tube, Silicone Pipe, Silicone Sleeve Made with 100% Virgin Silicone Without Smell (3A1003)
Description: the silicone hose, silicone tube, silicone sleeve are extruded or moulded by special silicone extruding machine or moulded machine with high quality silicone material under full sets mould of different inside diameter and outside diameter according to the request from buyers, high tensile strength, flexibility strong anti-pull and wider revise hardness range with good aging resistant, ozone resistant, heat resistant, insulation property, fuel oil resistance and lube resistance, working in the air, water or oil medium at the temperature of -60°C - +250°C. industrial grade silicone hose is made with standard extrude silicone and vulcanized with import peroxide without smell; food grade silicone hose is made with food grade transparent fumed silicone, platinum vulcanized, nonpoisonous and tasteless; medical grade silicone hose is made with medical grade transparent fumed silicone, platinum vulcanized with FDA and LFGB certificate. Apply to corona roller or transfer water, air, oil and other medium etc.

Specifications:
material: 100% virgin silicone material
quality: industrial grade, medical grade, food grade under postcured or platinum cured
color: transparent, translucent, dark red, orange, black, milk white, blue, grey etc.
surface: smooth/smooth
fiber reinforced: insert 1-5PLY polyester fiber
tensile strength: 7.5-9.8Mpa
hardness: 50, 60, 70, 80+/-5shore A
elongation: 350-720%
density: 1.25+/-0.05g/cm3
tear strength: 26-42N/mm
working temperature: -60°C - +250°C
wall thickness: 1.0, 2.0, 3.0, 4.0, 5.0mm
standard size:
Ø2mm x Ø4mm x 5-20kgs
Ø3mm x Ø5mm x 5-20kgs
Ø4mm x Ø6mm x 5-20kgs
Ø5mm x Ø8mm x 5-20kgs
Ø6mm x Ø9mm x 5-20kgs
Ø7mm x Ø10mm x 5-20kgs
Ø8mm x Ø10mm x 5-20kgs
Ø9mm x Ø12mm x 5-20kgs
Ø10mm x Ø14mm x 5-20kgs
Ø12mm x Ø16mm x 5-20kgs
Ø14mm x Ø18mm x 5-20kgs
Ø20mm x Ø30mm x 5-20kgs
Ø30mm x Ø40mm x 5-20kgs
Ø40mm x Ø50mm x 5-20kgs
packing in cartons
OEM & customized size are agreed

Food grade silicone fiber hose, silicone braided hose, silicone reinforeced hose
Item	silicone fiber hose, silicone braided hose, silicone reinforeced hose
Material	food grade silicone material
Reinforeced	braided polyester fiber
Color	transparent, red, blue, black or as the buyer's request color
Surface	smooth
Tensile strength	7.5-9.8Mpa
Hardness	50-70shore A
Elongation	300%
Density	1.25g/cm3
Working press	10Kgs
Minimum working temperature	-30°C
Maximum working tempeerature	+250°C
ID	5~32mm
Wall thickness	3~5mm
Tolerance	ID less than 1/2'', ±0.3mm; ID more than 1/2'', ±0.5mm
Size	id5mm x od11mm
	id6mm x od12mm
	id8mm x od14mm
	id11mm x od17mm
	id13mm x od21mm
	id16mm x od24mm
	id19mm x od27mm
	id25mm x od35mm
	id32mm x od42mm
Properties: znti-aging, erosion-endurable, high temperature resistance, anti-shock, etc.
Advantages: customized+ high performance+ high quality+ favorable price+ rich experience

Corona silicone tube, silicone sleeve:
Description: the corona silicone tube, silicone sleeve are made with high quality import fume silicone material which can resistant high voltage and inflaming retarding and special for corona machine. The high voltage corona sparkle is well-proportioned, it is easy to print color on plastic film with surface activation and millipore after corona treatment. Resistant 25KV at 1mm wall thickness. Apply for the roller sleeve, high-voltage terminal, protective sleeve, flexing tubing for all kinds of corona machine.

Specifications:
material: 100% virgin silicone from Germany "Wacker"
color: orange, dark red, translucent, black etc.
tensile strength: 9.8Mpa
hardness: 60-70shore A
elongation: 700%
density: 1.25g/cm3
working temperature: -60°C - +250°C
resistant: 18-25KV/mm
wall thickness: 3.0, 4.0mm
standard size:
Ø32mm x Ø38mm x 2-20m
Ø32mm x Ø40mm x 2-20m
Ø34mm x Ø42mm x 2-20m
Ø46mm x Ø54mm x 2-20m
Ø50mm x Ø58mm x 2-20m
Ø55mm x Ø62mm x 2-20m
Ø60mm x Ø66mm x 2-20m
Ø60mm x Ø68mm x 2-20m
Ø63mm x Ø71mm x 2-20m
Ø67mm x Ø75mm x 2-20m
Ø75mm x Ø83mm x 2-20m
Ø80mm x Ø88mm x 2-20m
Ø90mm x Ø98mm x 2-20m
Ø98mm x Ø102mm x 2-20m
Ø106mm x Ø114mm x 2-20m
Ø140mm x Ø150mm x 2-20m
Ø145mm x Ø153mm x 2-20m
Ø162mm x Ø172mm x 2-20m
packing in cartons
OEM & customized size are agreed
***when you enquiry, pls confirm the color, quality, hardness, size, quantity***

---
