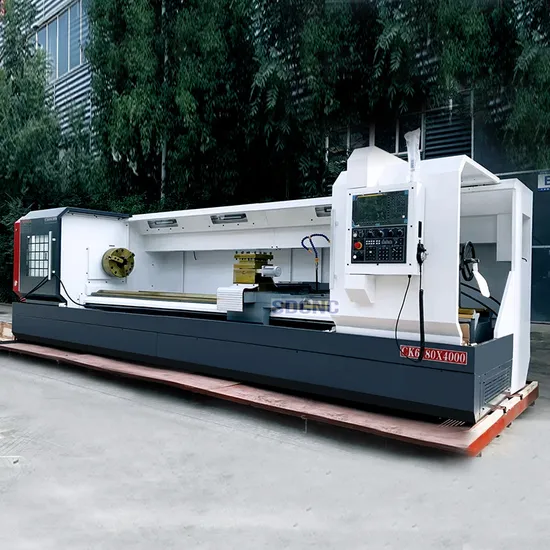

Ck6180 CNC Lathe Machine Tool Strong Cutting Rigidity with Siemens System

Product Description

CNC Lathe Features:
1.Frequency conversion stepless speed regulation
2. With servo system
3. Four position electric turret
4. Standard configuration: spring chuck and chuck double use
5.Optional configuration: hydraulic chuck, gang type tool post
The main feature :
1) Machine are made of high intensional cast iron with good aseismatic and high rigidity
2)Spindle of heavy-cutting structure to achieve high rigidity and high precision
3)With electrical turret,it can achieve high positioning ,fast speed for toolchange and high performance
4)With feeding motor and leadscrwe for type of direct connection,it can assure the machining precision and
positioning accuracy
5)Tailstock can be adopted by hydraulic driving to make sleee travel bigger and easy operation
6)Complete closed cover can protect the iron scraps splashing out. Product Description

Specifications	CK6163	CK6180	CK61100
Max.Swing over bed	630mm	800mm	1000mm
Max.workpiece length	1500/2000/3000/4000
Spindle taper	1:20/120
Chuck size	320mm Manual 3 jaws
Spindle bore diameter	104mm
Spindle nose	C11
Range of spindle speeds(3 steps)(Auto.change gear)	Three gears ,smooth adjustment 21-1500r/min ( L 162-1500 M 66-500 H 21-150)
X -axis motor torgue	10N.m	15N.m
Z -axis motor torgue	15N.m	18N.m
Tail stock center travel	250mm
The diameter of tailstock	100mm
Tail stock sleeve taper	Morse NO.6
Tool post type	Vertical-electric four station
Tool section size	240x240mm
X/Z rapid traverse	4/8m/min
Spindle Motor	11KW		15KW
Positioning accuracy	0.020mm
REPositioning accuracy	0.1

---
