Continuous Discharge Commercial Two-Phase Horizontal Screw Centrifuge for Juice Separation Horizontal Centrifuge

Product Description

Crude Palm Oil Decanter Centrifuge:
Palm oil is popular in demand throughout the world. It plays a very important role in the food industry The valuable oil has also adopted in the production of soap,candles, cosmetics,biodiesel etc.Palm oil is obtained from the fruit of the palm fruits.the main producer countries are Malaysia,Indonesia,Columbia and Africa countries with tropical climate.The oil is processed whole the year and they are in non stop operations.
Separation principle:
Palm oil decanter centrifuge is a horizontal separating decanter with a cylindrical-conical solid wall bowl for the continuous separation of solid and liquid.
The solid-wall bowl has a cylindrical section for efficient separation and clarification of the liquid. The product enters the decanter through the feed tube and passes through the distributor into the centrifugation space. The liquid level in the bowl is adjustable via regulating plates. Due to the centrifugal forces, the solid particles are forced to the bowl wall and are transported by the decanter scroll to the solids outlet.The liquids are separated in the separation zone And discharge
Competitive Advantage:

High rotation speed,high G force,big length -diameter ratio.
Big capacity
Low vibration,low noises strong afford capacity
Multiple protecting apparatus,reliable running
Reliable gear box system
Corrosion resistant an resistant key parts
Flexible drive and speed adjust mode
Famous and reliable electrical components
Applications:
Beverage technology
Dairy technology
Oil and facts processing
Chemicals,pharmaceuticals biotechnology and mineral processing
Oils and fats recovery
Starch technology
Oilfield
Environmental waste water treatment
Decanter centrifuges have wide process capacity to meet all ranges as per drilling program. It is commonly and widely used used for oilfield and gas well operations providing efficient solids control while significantly reducing the operator's total mud cost and minimize waste disposal volumes.
Gear box of planetary differential and cycloidal needle wheel structure both available for choose,with import brand hydraulic gear box .
Screw conveyor flights tiled or lined with ceramic, tungsten carbide, or other hard alloys.for vegetable oil and animal oil,commonly,TC sprayed is more economical and more suitable.
With safety protection: bowl speed and differential speed detection, over-vibration protection,overload and overheat protection, bearing temperature monitoring, conveyor torque protection and gas-tight explosion-proof protection.

Technical Paramter:

Model	Technical parameter					motor power		outline dimension(mm)	Machine weight (KG)
	(Diameter)mm	Rotation speed rpm	Length mm	Separation factor G	capacity M3/h	Main motor KW	Vice motor KW	Dimension: L×D×H
LW250×1000	250	3600	1000	1813	1-3	7.5/11	4/5.5	2065×1050×800	1100
LW360×1200	360	3500	1200	2467	3-8	11/18.5	7.5/11	2600×1500×850	1900
LW360×1500	360	3500	1500	2062	3-8	11/18.5	7.5/11	2800×1400×850	2000
LW420×1750	420	3200	1750	2406	4-20	30/37	11/18.5	3120×1580×1050	3000
LW450×1600	450	3200	1600	2578	5-25	30/45	11/22	3780×1050×1180	3500
LW450×1800	450	3200	1800	2578	5-25	30/45	11/22	3985×1050×1180	3600
LW450×2000	450	3000	2000	2266	5─25	30/45	11/22	4320×1050×1180	3800
LW500×1800	500	3000	1800	2517	10-30	37/55	15/22	4200×1110×1200	4300
LW500×2100	500	3000	2100	2517	10-30	37/55	15/22	4500×1110×1200	4500
LW550×1800	550	3000	1800	2769	10-35	45/55	18.5/22	4380×1160×1230	4800
LW550×2200	550	2800	2200	2412	10-35	45/55	18.5/30	4780×1160×1230	5000
LW650×1750	650	2000	1750	1454	20-50	75/90	30/37	4576×1300×1250	6000
LW650×2000	650	2000	2000	1454	20-50	75/90	30/37	4900×1300×1250	6200
LW800×2000	800	1800	2000	1450	40-100	90/110	45/55	6052×1460×2100	10000
LW1000×2350	1000	1600	2350	1432	50-140	110/132	55/75	6850×1860×2300	12800

Productive process

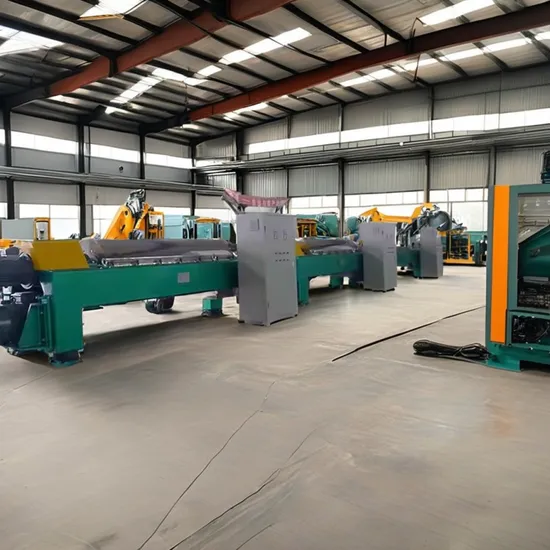

Workshop show of Shenzhou Group
Transportation and packaging
Company Profile
Our service& FAQ
The one-year warranty period for the whole machine except for tubes and human factors etc, and 12 months of after-sale service from the date when you receive the machine or 12 months when installation is finished;
Consultant services for whole machine life, and 24-hour technical support by email;
UPS, English software, user manual, and the installation & debugging by our experienced technicians.
1. Can your machine meet our needs well?
We will supply you with a proposal as to your specific requirement, and each machine is customized to satisfy the customer's need well.
2. Are you a factory or a trading company?
We are the manufacturer and have been in the industry for more than thirty years.
3. What's your payment way?
T/T by our bank account directly, or by Made in China trade assurance service, by the West Union, or in cash.
4. How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you the machine's pictures and videos, or you can come to us to have the quality checked by yourself, or by the third-party inspection organization contacted by your side.
5. We are afraid you won't deliver the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use Made in China trade assurance service or LC, Which will fairly protect your rights and money throughout the transaction process.
6. Why did you choose your company?
We have been specializing in the manufacturing of centrifuges for over 30 years. We can provide top-notch quality and very competitive prices .

---
