Portable Manual Hand Castable Refractory Pan Mixer Mixing Machine

Product Description

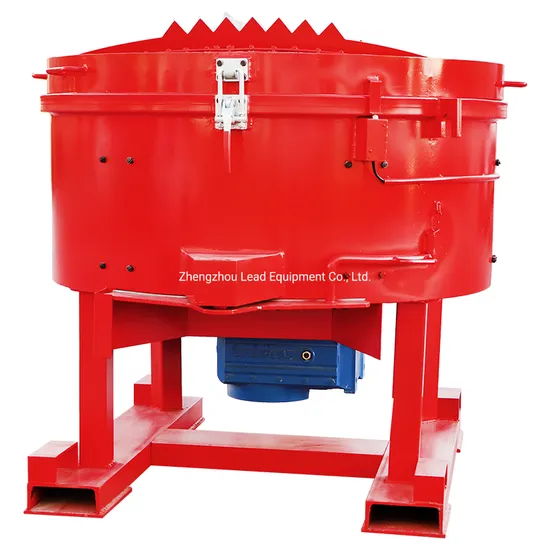

Portable Manual Hand Castable Refractory Pan Mixer Mixing Machine
Description:
LRM refractory pan mixer is specially designed for mixing refractory, castables materials etc. Which is available in a stationary or practical mobile design, is characterised by top performace. In order to ensure easy to move in the working site, LRM100 and LRM250 refractory pan mixer is equipped with walking wheel, LRM500 have forklift hole in the frame. There is high wear-resistant steel liner in the mixer bottom and inner wall, five pieces different purpose mixing arms could ensure refractory materials mix evenly and void sticking.
Product Features:
★ Pan mixer;
★ Special designed for site operation;
★ Fast mixing speed and homogenous;
★ Compact structure;
★ Comfortable feeding height;
★ Easy to move;
★ With bag breaker;
★ Water spray nozzles;
★ Low maintenance cost.
Safety Feature:
If the top lid door is opened in between the operation, machine can stop automatically. Because there is a limit switch between the top lid door and the hopper, once the top lid is opened, the power will cut off automatically and confirm the safety for operator.
Specifications

Item	LRM100	LRM250	LRM500
Mixing capacity	100kg	250kg	500kg
Rotating speed	49rpm	46rpm	33rpm
Motor Power	4kw	7.5kw	11kw
Feeding Height	1000mm	1150mm	1300mm
Dimensions (mm)	810x810x1090	1020x1020x1120	1250x1250x1300
Weight	420kg	650kg	890kg
Note:Technical data may change due to technical progress,subject to modification without notice.

Packing and Delivery
Applications:
LRM refractory mixer is used for mixing refractory materials, castables, friction materials, chemical materials, precast concrete, mortar, aggregrate mixing and glass materials etc. Could work together with refractory wet shotcrete machine, used for refractory materials spraying project in the steel industry.
Company Information:
Zhengzhou Lead Equipment Co, Ltd. established in 2009,is a profession-al manufacturer engaged in the research,development, production, sale and service of the construction and engineering equipment, such as shotcrete machine, hose pump, grouting pump, grout plant, refractories mixing and gunning equipment, foam concrete machine.We have SGS, CE and Iso certicate. Almost China large- size Hydropower station and Railway engineering con-tractors, such as Sinohydro Corporation, China International Water&Electric Corp, China Ralway Engineering Corporation,etc.,have been using our machines. Our products have been exported to the USA, Canada, India, Malaysia,Pakistan, Korea, Bahrain and Nepal, etc.

---
