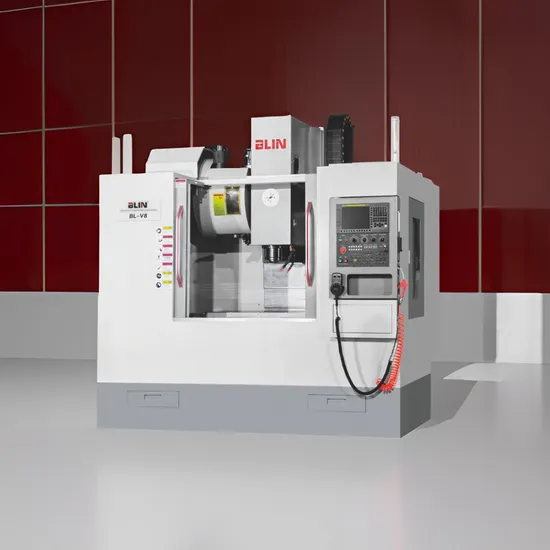

Metal CNC Milling Machine Price with Tool Change (BL-V8/V11)

Product Description

Metal cnc milling machine price with tool change (BL-V8/V11)
-3 axes ROLLER type linear guideway, Heavy-duty type,suitable for heavy-duty cutting
- Whole production process accord to TAIWAN standard
- Most parts adopt GERMAN/JAPAN/TAIWAN brand
- High speed, high precision, long using lifespan
- Adopt HT300 high class cast iron,after aging treatment and FEA analysis
- Bridge shape column, high rigidity, high stability
- Use 24T Arm type ATC, adopt CAM driving, fast and stable tool changing, tool selection for bi-way as random.
- 3 axes use C3 class precision ball screw, match up nut preloading and ball screw pre-stretching, pre-eliminate backlash and temperature rising, ensure stable positioning and repeatable positioning precision
Details:

Item	Specification	Unit	BL-V8	BL-V11
Worktable	Table size	mm	1000×550	1200(1300*)×600
	T slot(NO./width/gap)	mm	5/18/90	5/18/100
	Table max. loading	kg	700	900
Travel	X/Y/Z axes travel	mm	800/550/550	1100/600/600
Spindle	Distance from spindle nose to table surface	mm	120~670	120~720
	Distance from spindle center to column face	mm	600	650
	Spindle type	/	BT40
	Spindle motor	kw	7.5/11; 11/15(opt.)	11/15
	Spindle speed	rpm	8000(option:10000 belt-drive;12000/15000 direct-drive)
Feeding axes	X/Y/Z axes linear guideway width	mm	35/45/45(ROLLER type) Z axes 6pcs slide blocks	45/45/45(ROLLER type) X,Z axes 6pcs slide blocks
	X/Y/Z axes max. rapid moving speed	m/min	48/48/48	36/36/36
	X/Y/Z axes ball screw dia./pitch	mm	40/16	40/12
	X/Y/Z axes motor torque	Nm	22/22/22
Precision	Positioning precision	mm	±0.005
	Repeatable positioning precision	mm	±0.003
Tool magazine	Tool magazine type	/	24T Arm type
	Max. tool weight	kg	7	8
	Max. tool length	mm	280
	Max. tool dia.(fully loaded)	mm	80
	Max. tool dia.(no adjacent)	mm	110
	Tool changing time	/	Tool to tool: 1.8s	Tool to tool: 2s
Others	Overall Size	mm	2500×2200×2500	2900×2300×2600
	Weight	kg	5500	7200

Main parts brand:

Item	Brand
Spindle bearing	JAPAN-NSK/GERMANY-FAG
Ball screw bearing	JAPAN-NACHI/GERMANY-FAG
Linear guideway	TAIWAN-HIWIN,PMI/GERMANY-REXROTH
Ball screw	TAIWAN-HIWIN/PMI
Shaft coupler	JAPAN-NBK/MIKI PULLEY
Spindle	TAIWAN-KENTURN/VYU CHENG
Tool magazine	TAIWAN-DEX
Booster cylinder	TAIWAN-CHEN SOUND
Pnuematic parts	TAIWAN-MINDMAN
Lubrication pump	JAPAN-LUBE
Electric parts	FRANCE

Standard configuration:
-FANUC 0i MF CNC Controller
-24T Arm type tool magazine
Optional configuration:
-SIEMENS 828D CNC controller
-Chip conveyor
-Coolant through spindle
-Tool setting probe
-4th axes
-5th axes
