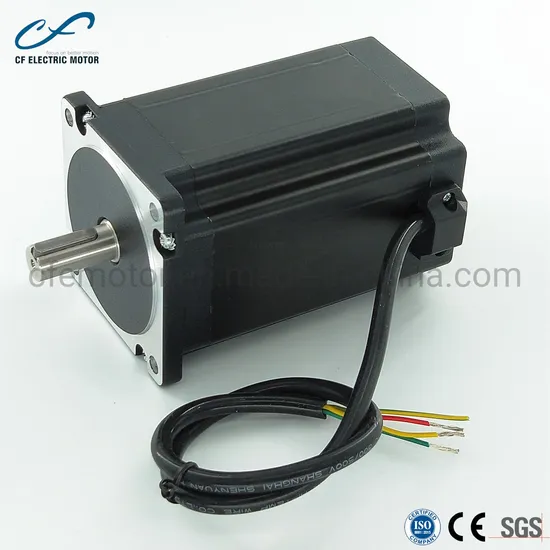

3 Phase 86mm Series 80mm Length 3nm NEMA 34 Stepper Motor

Product Description

HYBRID STEPPING MOTOR 34HT SERIES
3-Phase Stepper Motor General Specifications:
Step Angle ----------------------------------------------------------------------------------------------------------------1.2° (full step)
Step Angle Accuracy --------------------------------------------------------------------------------------±5%(full step, no load)
Resistance Accuracy --------------------------------------------------------------------------------------------------------------±10%
Inductance Accuracy --------------------------------------------------------------------------------------------------------------±20%
Temperature Rise ----------------------------------------------------------------------80ºC Max(rated current, 2 phases on)
Ambient Temperature Range ---------------------------------------------------------------------------------------- -20ºC∽+50ºC
Insulation Resistance --------------------------------------------------------------------------------------- 100MΩ Min. 500VDC
Dielectric Strength --------------------------------------------------------------------------------- 500VAC 50Hz 1mA 1 Minute
Insulation Class ------------------------------------------------------------------------------------------------------------------ B class
34HT8040 Stepper Motor Electrical Specifications:

Model	L Motor Length (mm)	Holding Torque (N.cm) Min.	Rated Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Rotor Inertia (kg.cm²)	Lead Wire	Detent Torque (N.cm) Max.	Motor Weight (kg)
34HT7040	70	250	4.0	0.7	9.3	1.1	3	12	2.1
34HT8040	80	300	4.0	0.9	12	1.23	3	15	2.3
34HT10040	100	500	4.0	1.3	16.2	2.7	3	20	3.3
34HT11840	118	600	4.0	1.60	16.5	3.3	3	30	3.7
34HT13040	130	750	4.0	1.95	17	4.0	3	35	4.0
34HT15040	150	900	4.0	2.35	19	5.0	3	45	5.5

*Shown in the table is the representative product. It can be customized according to the requirements of users.
3-phase Nema34 Stepper Motor Data Drawing
Shaft types:
As a factory, we designed several stepper motor shafts for customers. You can choose the one you need from the following pictures.

Motor End:
Cable Flying Wires
Nema34 Stepper Motor Application:
Our stepper motor and the compatible stepper driver are widely used for making Laser Engraving Machine, Printing Machine, Cutting Machine, Ultrasonic Belt Cutting Machine, Automatic Screw Locking Machine and etc.
Packing: Hard cardboard or wooden box with foam inside which can protect the stepper motors well.
Shipping: Normally the delivery time is within 10 days according to customer's choice or ship by the best express company to the destination.
Delivery: 1.with over 17 years of manufacturing experience, any type of customizing is available. 2.with perfect service system, we can provide you with first class pre and after sale service. 3.we have enough storage of each type of products, with first class packaging and shipping, make sure accurate delivery. 4.professional sales consultants give you all answers about our proucts.
Certificate:
FAQ:
Question1: What is your service time:
Answer: 24 hours online service. Email will be replied within 12 hours.
Question2: What about your products' warranty?
Answer: 1 year. For sea orders, the warranty is 15 months.
Question3: Do you have any certificate?
Answer: Yes we have. Our factory passed ISO9001 and SGS verified. All motors have been approved by CE.
Question4: Do you offer ODM and OEM Service?
Answer: Yes. ODM products according to customized design and specification as well as OEM products.
Question5: What is the delivery time?
Answer: For samples, 10-30 days according to the differnet produced difficulty. For bulk, normally 20-30 days. For customized order, the delivery can be negotiated.

---
