Color Steel Glazed Tile Roofing Tile Making Machine Roll Forming Machine

Product Description

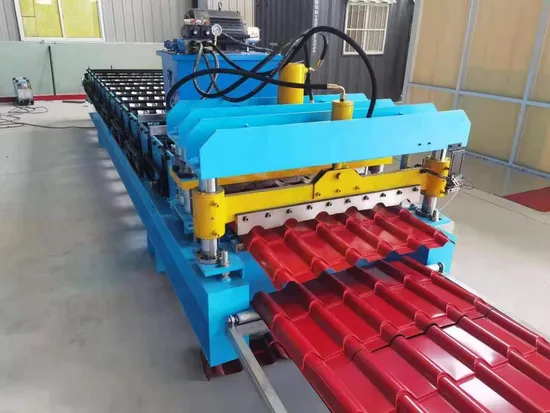

Tile/Roof Roll Forming Machine
The machine is composed of the Frame, PLC control system, hydraulic station, and automatic shearing system.
The tile/roof produced are flat and beautiful in appearance, uniform in paint pattern, and are widely used in industrial and civil buildings, such as houses, warehouses, garages, hangars, gymnasiums, exhibition halls, theaters and other room surfaces and walls. The Chart of Process Flow
Product Description
1.Feeding part
We adopted the feeding part with hand wheel to adjust the material width more conveniently.

2.Hydraulic pump
We put the pump into the machine in order to save space.

3.Shanghai bojiang motor
The machine driving by hydraulic motor to increase the speed (20-23m/min)and efficiency.

4.Support rod
The support rod is more stronger than before in order to hold the machine better.Also the wall panel is 16mm in thickness.

5.Rollers
We have our own lathe machining center in order to control the quality by ourselves.Material of rollers:45# steel, roller surface polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

6.The cover of shaft bearings
Stainless steel dust shield is mounted on the outside of the bearings in order to keep the bearings clean then increase the machine working life.

7.Computer control panel
The control system can set up the program easily by the touch screen,and we connect all the wires before shipping,you just connect the main wire line when arrive.

8.The cutter
The cutter blade of ours is really CR12;
The cutter frame is build by guide


Product Parameters

Raw Material	PPGI,PPGL
	Material Thickness:24/26 Gauge (0.4-0.6 Mm)
Machine Frame	350mm H Beam Structure, With 18mm Welded Steel Middle Support Plate.
Material Of Rollers	High grade 45# forged steel,Chromed treatment
	Chromed Treatment (Chrome Thickness:0.05 Mm), Make The Rollers Surface More Smoothly, Improve The Hardness And Prevent Abrasion,Anti Corrosion Increase Of Service Life
Diameter Of Shafts	Φ80mm Solid
Material Of Shafts	High Grade 45#,With Heat Treatment
Forming Speed	15 M/Min
Voltage	380v/50hz/3p (As Requested)
Transmission Way	By 1 Inch Chain (Double Chains)
Cutting Blade Material	Gcr12 quenched treatment
Cutting Type	hydraulic post cutting
Driving Method	By pillar type Cylinder

product show

Packaging & Shipping
Company Profile
We, Tangshan Shuoen is a professional cold roll forming machine manufacturer, We have been focusing on this field for 10 years. Our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoiler, light keel roll forming machine, purlin machine, leveling and slitting machine, and other related construction equipment.Shuoen has employed a team of engineers for more than 10 years. At the same time, our machines use branded electrical components, raw materials from branded steel factories, strict process control, two-year warranty, installation and training services.Our customers are all over the world, such as 65 countries in Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi Arabia, South Korea, South Africa, Kenya and other different regions. We have extensive experience in the needs of different countries, such as profile, thickness range,use, installation, etc.Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.
Q: If you can customized the glazed tiles forming machine for i need?A: Yes, Just share your design to us is ok, we will give you one fully quotations.Q: About the voltage, if ok 380v/50hz ?A: Yes, we can customized the voltage to you.Q: If the price include the delivery fee?A: No, the price not include, usually the web show, it is exw price, if you want we help you delivery, pls share your nearestseaport to us is ok.

---
