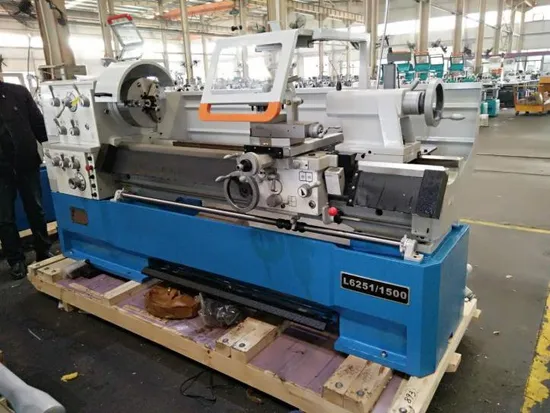

Precision Manual Price Torno Horizontal Parallel Mechanical Lathe Machine for Metal Turning

Product Description

Product Description
Manual lathe is a metal cutting machine mainly used for machining forming surfaces such as inner and outer circles and threads. It achieves the manufacturing of various shapes and sizes of parts by turning rotating workpieces using a turning tool. The operation of manual lathes mainly relies on manual control, including adjusting speed, feed rate, and tool selection and installation, which have a direct impact on machining quality and efficiency.

Precision ground and hardened bedways

With 2 precision D degree taper roller bearings on the spindle

Head stock gears are made of high quality steel ground and hardened more than HRC 48°

Integrated deluxe cast iron stand

Variable speed model for optional

Accessories;

Standard accessories	Special accessories
Three jaw chuck	Living center
Four jaw chuck	Taper turning attachment
Steady rest	Drill chuck
Follow rest	Stopper
Face plate	QCTP
Dead center	DRO
Thread chasing dial	Chuck cover
Reduction sleeve	Leadscrew cover
Splash guard	Tool post cover
Toolbox & tools 1set

major specifications	L6241
max. swing over bed	410mm
max. swing over cross slide	224mm
max. swing in gap	640mm
distance between centers	1000/1500/2000mm
spindle bore	58mm
taper of spindle bore	M.T.#6
range of spindle speed	25-200rpm
range of longitudinal feeds	0.03-1.7mm/rev
range of cross feeds	0.014-0.784mm/rev
range of metric threads	0.1-14mm
range of inch threads	2-112 TPI
diametrical pitchs range	4-112 D.P.
module pitches rage	0.1-7 M.P.
taper of tailstck bore	M.T. #4
pwer of mtor	4KW/5.5KW
