Product Description
Product Description

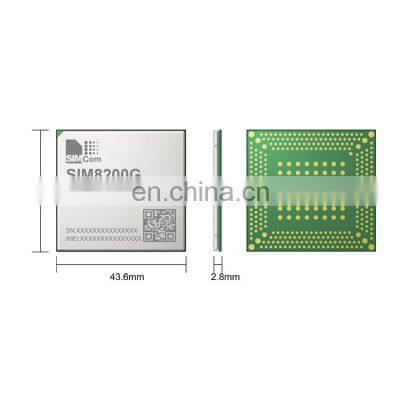

DescriptionSIM8200G●The SIM8200G is Multi‐Band 5G NR/LTE‐FDD/LTE‐TDD/HSPA+ module solution in a LGA type which supports R15 5g NSA/SA up to 4.0 Gbps data transfer.●It has strong extension capability with rich interfaces including UART,PCIe,USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's application.●The package of SIM8200G is LGA form factor. This also minimize the investments of customers, and enables a short time‐to‐market.●It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.Product Advantages● Standard LGA interface.● High throughput data communication.General FeaturesOther Features• Supply voltage range: 3.3V ~ 4.3V• Control Via AT Commands• Operation temperature: ‐40℃ ~ +85℃• Dimensions: 41.0*43.6*2.8mm• Weight: TBD• Sub‐6G/LTE‐FDD/LTE‐TDD/WCDMA• Support UL 2XCA• USB Driver for Microsoft Windows Win7/Win8/Win10• USB Driver for Linux /Android • RIL supporting for Android 5.0/6.0/7.0/8.0• RNDIS /NDIS/PPP/MBIM to Win8• Firmware update via USB• TCP/IP/IPV4/IPV6/Multi‐PDP/FTPS /HTTPS/MQTTS/DNS• SSL3.0/TLS1.0/TLS1.2• DTMF (Sending and Receiving)• VoNR/VoLTE/CSFB• FOTA/OTA• AGPS/SUPL2.0vDataInterfaces• Sub‐6G‐ Uplink up to 450Mbps‐ Downlink up to 4 Gbps• LTE CAT22‐ Uplink up to 200Mbps‐ Downlink up to 2.4Gbps• HSPA+‐ Uplink up to 5.76Mbps‐ Downlink up to 42.0Mbps• USB2.0 with High speed up to 480Mbps• USB3.1 with SS Gen2• UART• USIM and E‐SIM interface(1.8V /2.85V)• Digital Audio through PCM• I2C• I2S for Audio• SPI• ADC• GPIOs• RGMII• PCIe Gen3• SDIO3.0• WIFI• PMI• Antenna x 8Approvals• RoHSREACHCCCCTASRRCMobileUnicomTelecomJATETelecRCMCE(RED)GCF5G NRn1,n2,n3,n5,n7,n8,n12,n20,n25,n28,n40,n41,n66,n71,n77,n78,n79LTE-TDDB1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71LTE‐TDDB34/B38/B39/B40/B41/B42/B43/B48WCDMAB1/B2/B3/B4/B5/B8Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
