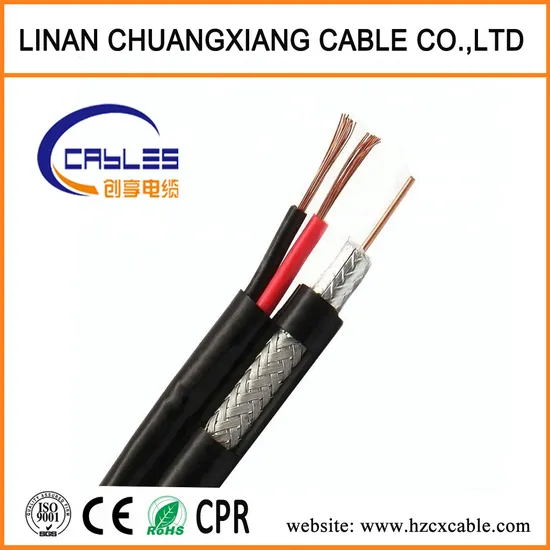

Coaxial Cable Rg59 with Power Cable Copper Wire TV Cable Twin Cable for Surveillance Camera System Security Product CATV Cable

Product Description

Item	RG59 with Power Cable for AHD CCTV Camera
Inner Conductor	20AWG CU/CCS
Insulation	3.66+/-0.2mm Foamed PE
Shield	Al Foil (Copper Color)
Braid Shield	64x0.12mm CCA wires Braid (51% Coverage)
PVC Jacket	6.1+0.1mm PVC Jacket
Power Cable	30x0.15mm CCA+1.7mm Red PE
	30x0.15mm CCA+1.7mm Black PE
Outer Jacket	4.0+0.1mm PVC Jacket
Note: Customized requirements are welcomed!

Electrical Characteristics
Impedance: 75+/-3 Ohm	Return Loss	5-1000MHz≥22dB
Capacitance: 52+/-2 pF/M		1000-2000MHz≥20dB
Velocity of Propagation: 85%	Screening Effectiveness≥70dB

Attenuation(@20ºC)
Frequency (MHz)	Max Attenuation (dB/100FT)	Max Attenuation (dB/100M)
5	0.9	2.8
55	2.1	6.7
187	3.6	11.8
211	3.8	12.5
400	5.1	16.7
500	5.7	18.7
750	7.0	22.8
860	7.5	24.6
1000	8.0	26.3
1500	9.9	32.5
1800	10.9	35.6
2200	12.6	41.2
3000	13.8	45.2

	Delivery Time	Payment Terms	Shipping Method
Samle Order	1-3days	100% in Advance	By Air
LCL Order	3-25days	30% Deposit and the Balance Paid Before Shipment Or Against B/L Copy	By Air Or By Sea
FCL Order	25-45days		By Air Or By Sea

Linan Chuangxiang Cable Co., Ltd is a professional cable manufacturer in China,we have more than 11years in this line.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients
and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world,and we sincerely look for-
ward to woking with all clients from all over the world.
Our Main Products:
1,Optical Fiber Cable and Patch Cord
2.Lan and Network Cable and Patch Cord
3.Alarm Cable and Speaker Cable
4.Drop Wire and Telephone Cable
5.Communication Cable
6.Coaxial Cable
7.Electrical Wire and Power Cable
8.Telecom Accessory. 1.Are you the real manufacturer?
Yes. We are the real manufacturer,which is specialized in coaxial cable,lan cable and optical cable,etc.
2.Can you accept small order?
Yes,We support new project of our customers,and we know business is always from small order.
3.What is your delivery time?
Usually within 30days after we received deposit.
4.What is your payment way?
T/T, L/C,it can be negotiated.
5.Can you supply customized products and logo?
Yes. We supply OEM&ODM service.
If you were interested in our competitive products,pls do not hesitate to contact us.

---
