2.2inch 176X220 4-Wire Spi TFT LCD Module Driver Board Connect Arduino Uno and Mega2560

Product Description

2.2inch 176x220 4-wire SPI TFT LCD Module Driver Board Connect Arduino UNO and Mega2560

Product Description Product Specification:
2.0-inch color screen,support 16BIT RGB 65K color display,display rich colors 176x220 resolution, clear display Using the SPI serial bus, it only takes a few IOs to illuminate the display With SD card slot for convenient function expansion Provide underlying libraries and rich sample programs for Arduino, C51, and STM32 platforms Military-grade process standards, long-term stable work Provide underlying driver technical support

Name	Parameter
Display Color	16BIT RGB 65K color
SKU	MAR2201
Screen Size	2.2(inch)
Type	TFT
Driver IC	ILI9225
Resolution	176*220 (Pixel)
Module Interface	4-wire SPI interface
Backlight	3 White Led
Active Area	34.85x43.56 (mm)
Module PCB Size	42.46x67.20 (mm)
Operating Temperature	-20ºC~60ºC
Storage Temperature	-30ºC~70ºC
Operating Voltage	5V/3.3V
Power Consumption	TBD
Rough Weight(Package containing)	23 (g)

Detailed Photos

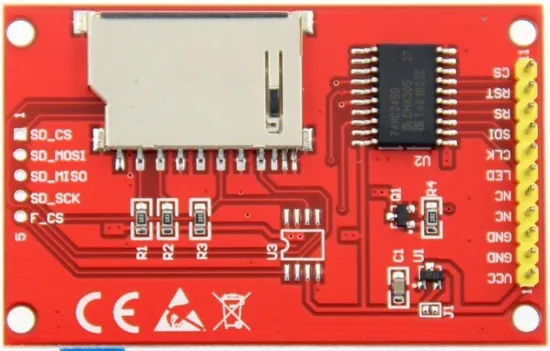

Interface Definition Hardware Description:
Interface Definition:

Number	Pin Label	Description
1	VCC	LCD Power positive (3.3V~5V)
2	GND	LCD Power ground
3	GND	LCD Power ground
4	NC	Not defined, reserved
5	NC	Not defined, reserved
6	LED	Backlight control, high level lighting, if not controlled, connect 3.3V always brigh
7	CLK	LCD SPI bus clock signal
8	SDI	LCD SPI bus write data signal
9	RS	LCD register / data selection signal, high level: register, low level: data
10	RST	LCD reset signal, low level reset
11	CS	LCD chip select signal, low level enable
