Automatic Aluminum Frame Spacer Bar Bending Machine for Double Glazing Line

Product Description

Product Description

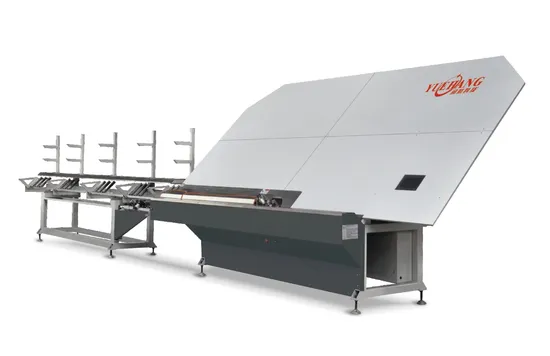

Automatic Aluminum Frame Spacer Bar Bending Machine for Double Glazing Line
1.Apply CNC control system with touch screen interface (Both Chinese and English language) .Parameter setting and transfer are very convenient .
2.Adopt two axis servo motor accompanied with encoder for profile supply and bending control. Size error within ±0.3mm/m, angle error within ±0.3°.
3.Be able to imitate finished frame shape. The image is symbolic and lively .
4.Four profile magazines for different specifications of spacers .
5.All activities can be controlled manually for the convenience of test and overhaul.
6.Intelligently avoid spacer connection part. Automatic cutting after bending. Shape shift among line,angle and arc are flexible.
Product Parameters
Parameter of Automatic Aluminum Frame Spacer Bar Bending Machine for Double Glazing Line

Spacer Width	6mm-20mm
Frame size	Max:2000mm×2000mm Min:350mm×350mm
Conveying speed	at 0-90m/min(adjustable)
Air pressure	0.7MPa
Power	3P 415V/1P+N 240V, 50Hz 5kW
Machine Size	10000mm(L)×2200mm(W)×2600mm(H)

Company Profile
Our Company for Automatic Aluminum Frame Spacer Bar Bending Machine for Double Glazing Line
LINGBO (SHANDONG) CNC MACHINERY Co., Ltd is a professional manufacturer of glass further processing machines
more than ten years, and now based on the strong technical support and strong after-sell services, we develop
rapidly. We are focusing on the high quality machines producing and supplying includes the focuses on the design,
R&D, manufacture and after-sell service.
Our key machines is Insulating Glass Machine, Glass Filling Machine, Glass Sealing Machine, Glass Washing Machine,
Glass Cutting Machine etc the complete glass deep processing machines. We have about 20 patent for our products,
and now have Occupied one-third of the Chinese market.
Automatic Argon Gas Filling Machine Line is our patent products as well, we adopts the top technology of side filling
way, which greatly improves the inflation effect and efficiency. Ensuring the double glazing glass argon gas
concentration is kept at 90%, even reach 98% for small glasses.
We have developed two working methods for such argon gas filling line, one is suitable for all glass for filling, and the
other is suitable for half of insulated glass. Strong technical support gives us a strong ability to serve customers. Now
our argon gas filling machine is the most popular products, it adopts the side filling method as the special filling way
to save energy. Filling result can get more than 90%. It is the ideal products for the old bottom filling ways.
In order to make sure the machine stability, we have specially make the machines structures and using the first-class
electrical parts.
Our company develop slogan is Cooperate and Win-win, so we warm welcome to different zone customers to
cooperate, and we will offer the best price with highest quality products.
Strong technical support gives us a strong ability to serve customers. We wish to cooperate with you for long time!
