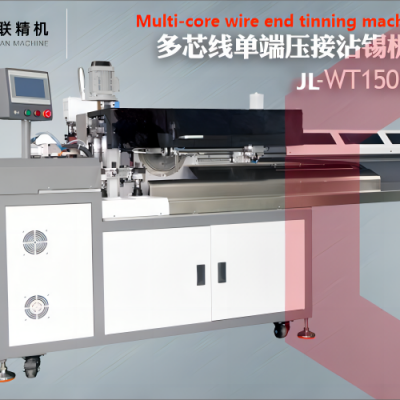

Multi-core wire end tinning machine JL-WT1500

Product Details

Product Description

Product Description
Product Parameter：
Power supply: AC 220V/ 50Hz
Main functions: wire cutting, front end peeling, play terminal, back end peeling, twisting wire, tin
Front peel length: 0-65mm
Front stripping cable length: 0-15 mm
After peeling length: 0-130mm
After stripping wire length: 0-15mm, tin length 0-15mm
Cutting length: 80-1500mm (can be customized extended version)
Can process wire range: Φ3-Φ7.8mm
Capacity: depends on wire
Air pressure: 0.5-0.7Mpa
Air pressure monitoring: pressure alarm
Motor: Huichuan
Pneumatic components: AirTAC
Lead screw: TBI
Guide rail: silver
Band: American Getz products
Bearing: Japan NSK
Blade and: imported alloy steel, slow wire processing, precision grinding
Body size: L 3250x W 850x H 1500 (mm)
Fully automated non-standard equipment can be customized according to customer samples.

---
