High Efficiency Scrap Metal Shredding & Metal Shredder System

Product Description

High Efficiency Scrap Metal Shredding & Metal Shredder System Product Description
Tire Recycling Machine, Shredder, Granulator manufacturer / supplier in China, offering Scrap Metal Shredding & Recycling System /Plant, Gsw Centrifugal Dryer/Centrifuge Dewatering Machine, Gxc Series Heavy Duty Granulator/Crusher and so on.

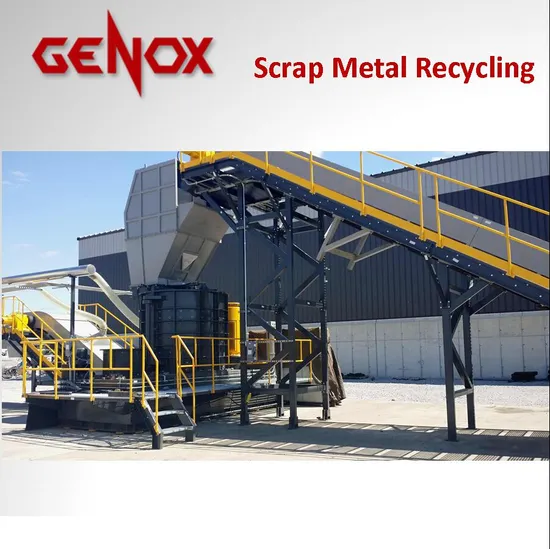

METAL SCRAP RECYCLING SYSTEM

GENOX METAL RECYCLING TECHNOLOGY Our advanced Metals Recycling Plants are often installed at scrap metal recycling facilities for the processing of various different metallic waste streams. Typical applications for these robust, maintenance friendly systems inc udes; light iron scrap, ELV's (vehicle shells and body panels),steel drums, white goods(refrigerators, washing machines etc.) electronic scrap & computer waste (WEEE/E-Waste), and various other metal containing materials. Following the pre shredding stage, the shreds are further reduced in size and densified by the Vertical Shredder. During this process non-ferrous and non-metallic materials are liberated allowing them to be effectively separated. Drum magnets and eddy current separators (where required) sort the shredded product into their respective categories-ferrous, non-ferrous & non-metallics.The resulting steel frag product is both clean and compact with a high bulk density, which is ideal for sale and for minimising transportation costs.About XENO series Two Shaft Shredder
XENO series twin shaft shredders are extremely high torque, high throughput shear type size reduction machines often used for pre-shredding of large volume or high strength materials which may contain contamination.
The unique modular split chamber design, provides excellent access to key components therefore reducing maintenance downtime and service costs which is a huge advantage when comparing machines of this size.
About OZMA series Vertical Shredder

OZMA Vertical Shredders are mainly applied in applications processing pre-shredded metal scrap from twin shaft shredding systems. These machines aggressively size reduce and densify pre-shredded material whilst liberating the various different fractions and allowing for better separations and reduced transport costs, The breakers in the upper part of the chamber smash the material until it is small enough to enter the gap between the milling rings and
chamber liners. When the material enters the second stage the milling rings impact, grind and roll the material into clean fragments. When milled in to small enough pieces, the balled up material falls into the lower chamber. It is then ejected by the discharge paddle. The three above stages crate a product which is both clean and of high bulk density suitable for transportation.

Prior to delivery from our facility, all our scrap metal recycling systems are set up and tested under "real world" conditions to ensure the plant capacity and quality of the finished products is guaranteed. Customers are welcomed and encouraged to attend these trials to see their plant in operation, receive training on the operation and maintenance of their system, and to see similar equipment in build.
A typical Metal Recycling System properly including machines as below:
Steel Hinged Belt Conveyor Suitable for the conveying heavy, sharp, difficult to handle materials in extremely demanding working environments.Twin Shaft Shredder High torque, slow speed shredding of the input materials into manageable strips, typically 100mm wide X 300mm long, suitable for further processing in downstream equipment.Vertical Shredder For the aggressive size reduction and densification of pre-shredded materials into into 50-80mm pieces, During this shredding process the material is sheared, crushed, rolled and smashed, creating a clean, dense, steel frag product, whilst also liberating other materials to allow for effective separations.Central Dust Control System Dust and fines created during the shredding process are extracted to a centralized filtration system through a series of ducting.Ferrous Metal Discharge Separated ferrous material from the magnet system is conveyed to a single discharge pointNon-Metallics Discharge Non-metallics material is conveyed to a drum screen(trommel) and can be segregated into <25mm, 25-50mm &50mm+ fractions.Eddy Current Separator The non magnatic materials are conveyed to the ECS rotor at a controlled rate. The material is separated by a diverter plate into non-ferrous (aluminium, copper & brass)&non-metallic fractions (plastics etc.). These products can either be sold as is, or be further processed and upgraded to increase their value.
Detailed Photos
Company Profile
FAQ
1.Question:Will we provide pre-sale services ?
Answer:Genox consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
2.Question:Is our after-sales service excellent ?
Answer:Genox's skilled technicians are available to assist with onsite installation,commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Genox technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
Genox holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Customers are encouraged to hold their own critical spare parts such as granulator blades and screens to ensure optimal machine condition and performance.

3.Question:Will we provide technical support ?
Answer:Genox provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.

---
