Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Workbench Size (mm)
1140*650
Dimension(L*W*H)
2000*1650*1900
Max. Cutting Thickness(mm)
700
Warranty of Core Components
1 Year
Optimal Processing Surface Roughness
2.5 Um
Key Selling Points
High-Accuracy,Automatic
Wire Diameter (mm)
0.10-0.20
Worktable Travel (mm)
500*800
Transport Package
Wooden Case
Specification
1650mm*1290mm*1950mm
Production Capacity
150 Set/Sets Per Month
Product Description
Specification

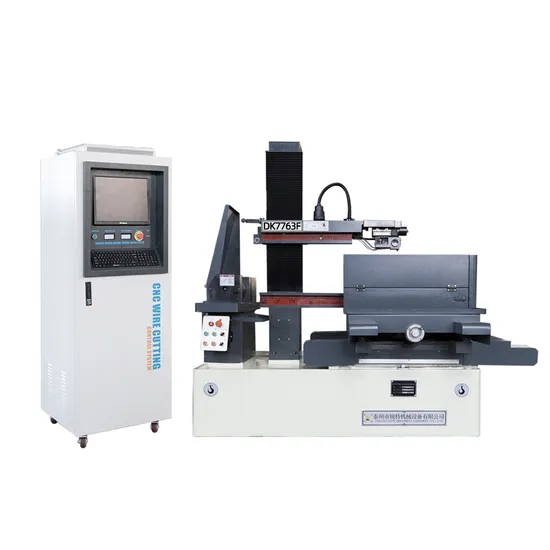

Product Informations Taizhou Ruite Machinery Equipment Co., Ltd. produces whole series of DK77 CNC edm wire cutting machines,which adopts high precision V-shaped guide rail(Linear guide rail optional) and P3-grade high precison ball screw. The products have high quality, complete models, long service life and high precision. Machine specifications can be customized according to customer needs,like non-standard models DK7740(45)F,DK7750(55)F,DK7763F,DK7780F,DK77100F,DK77120F or even larger models.
The company also produces ±30°, ±45° swing large taper machines and CNC high-precision middle speed edm wire cutting machines(Precision≤±0.005mm,roughness≤1.0μm). The following are the main parameters of DK77 series machines:
1.Standard maximum cutting taper:±6°/80mm;(±15°,±30°,±45° are optional)
2.Precision ≤ 0.02mm,according to GB7926-2005 standard;(If linear guide equipped, the precision can reach 0.01mm)
3.Best surface roughness ≤ Ra2.5μm(single-cut),Ra1.5μm(multi-cut);
4.Molybdenum wire diameter:0.1-0.2mm;
5.Max. cutting speed≥120mm^2/min;
6.Voltage:3 phase 380V(single phase 220V,3 phase 220V or other voltage can be customized),Power:1.5KW;
7.Working fluid:Water-based emulsion.
Model
| Worktable travel(mm)
| Worktable size(mm)
| Max. cutting thickness(mm)
| Max. load(kg)
| Dimensions(mm)
| Weight(kg)
|
DK7720
| 200*250
| 490*380
| 200
| 100
| 1200*900*1300
| 800
|
DK7725
| 250*320
| 520*390
| 300
| 200
| 1450*900*1500
| 1000
|
DK7735(32)
| 350(320)*450(400)
| 730*490
| 500
| 300
| 1400*1100*1600
| 1100
|
DK7745(40)
| 450(400)*550(500)
| 810*570
| 400
| 500
| 1600*1200*1600
| 1400
|
DK7745F(40F)
| 450(400)*630
| 950*600
| 400/600
| 600
| 1600*1580*1600
| 1600
|
DK7755(50)
| 550(500)*650(630)
| 950*650
| 700
| 700
| 2000*1500*1900
| 1800
|
DK7755F(50F)
| 550(500)*800
| 1140*650
| 700
| 700
| 2000*1650*1900
| 2000
|
DK7763
| 630*800
| 1140*750
| 700
| 1000
| 2100*1700*2050
| 2400
|
DK7763F
| 630*1000
| 1350*750
| 700
| 1200
| 2250*1850*2050
| 2800
|
DK7780
| 800*1000
| 1350*980
| 900
| 2000
| 2400*1900*2350
| 4000
|
DK7780F
| 800*1200
| 1600*1050
| 900
| 2400
| 2550*1950*2400
| 4500
|
DK77100
| 1000*1200
| 1600*1100
| 1000
| 2600
| 2850*2500*2500
| 5200
|
DK77100F
| 1000*1400
| 1800*1250
| 1000
| 2800
| 2950*2050*2500
| 5800
|
DK77120
| 1200*1400
| 1800*1350
| 1000
| 3000
| 3050*2750*2500
| 7500
|
DK77120F
| 1200*1600
| 2000*1500
| 1000
| 3500
| 3100*2850*2500
| 8400
|
DK77160
| 1600*1800
| 2000*1700
| 1000
| 4000
| 3250*3000*2500
| 10000
|
Products Description
The Sample Shows
Applicable Industries Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Construction works
Hot Sale Items
Company Profile
Taizhou Ruite Machinery Equipment Co., Ltd, specializing in the research and development, testing, manufacturing, and sales of edm wire cutting machine, edm drilling machine, middle speed edm wire cutting machine, molybdenum wire, machining center, edm die sinking machine, jade wire sawing machines and electrical processing equipment.
Ruite covers an area over 15000, has passed CE certification, BV certification, ISO9001. etc.
Innovative Ruite CNC is committed to providing customers in various industries with overall solutions for wire cutting, including customized production of machine tools, installation and life-long technical services, to achieve a win-win situation between enterprises and users. The company's "Ruite" DK77 series of medium and fast wire cutting machine tools are known for "large taper, large stroke, high efficiency, high precision, new structure, low loss, more energy-saving, and more environmentally friendly".
The products are selling well in Europe and America. We sincerely welcome people from all walks of life to come and visit.
Exhibition
Certifications
CE Certificate
BV Certificate
ISO 9001
Chinese Itegrity Entrepreneur
Value Service And Credit Enterprise
Value Quality And Credit Enterprise
Our Partners
Packaging & Delivery
FAQ
Q1:What information do you need before making quotation? A:Worktable size or table travel you need.Surface roughness and cutting speed requirements. Q2:How to choose the machine I want? A:Firstly,please correspond to the worktable travel and cutting thickness according to the size of the workpiece to find a suitable model; Secondly,please check if precision and roughness meet your requirements;(Our TRS series machines have much higher precision and better finish) Q3:What should I do to start a new business in EDM wire cutting machine area? A:Please contact us immediately,we provide free pre-sales consultant service of brass slow wire EDM cutting machine. Q:Why choose you?What is the difference between you and other Chinese supplier? A:We have specialized in this area for over 20 years.Our EDM wire cutting machines are exported to Russia, India, UAE,South Korea, Canada, Vietnam, Thailand, Mexico, Turkey and etc. You can get higher quality product & better professional service from Ruite with same price. Q3:I`m worried about after-sales service! A:Warranty is one year. Any parts damaged during warranty will be replaced for free! We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price. Our engineers are available to service overseas!
>>
