US$1.00-10.00
|
100 Meters
(MOQ)
|
Basic Info.
Insulation Material
Epr/EPDM
Material Shape
Round or Flat
Wire Core Material
Copper
Certification
ISO, CCC, CE, VDE
Product Name
Flexible Rubber Cable
Rated Voltage
450/750V, 300V/500V
Cross Section Size
1.5-800mm2
Cores
1-5 Cores or Others
Standards
VDE EU Ieca, BS, DIN Ect
Temperature
-40 to 90 Centigrade
Color
Blue, Black, Brown, Green/Yellow
Price
Get Within 12 Hours
Transport Package
by Wooden Drum or Others
Production Capacity
15 Million Km
Product Description
Product Description

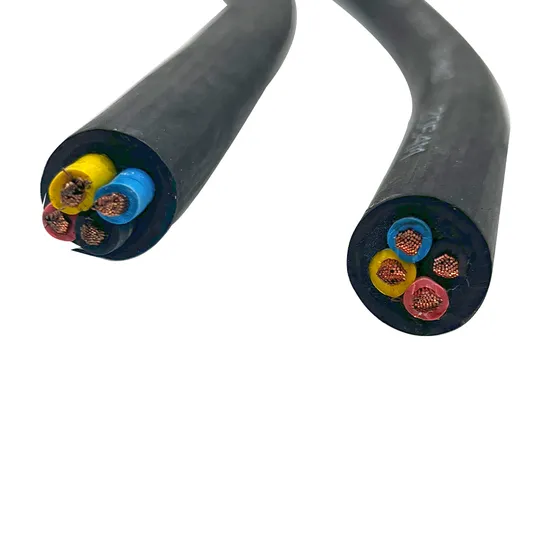

H07RN-F 300/500V 450/750V Copper EPR EPDM Insulated Rubber Sheathed Flexible Power Cable
H07/05RN-F Rubber Cable Feature:
1. Conductor: Class 5 flexible plain copper conductor
2. Insulation: EPR(Ethylene Propylene Rubber)
3. Sheath: PCP(Polychioroprene)
4. Cores: 1 2 3 4 5 Cores or Others
5. Voltage: 450/750V,300/500V
6. Temperature Rating: conductor operation temperature -40°C to +60°C(90°C max)
7. Minimum Bending Radius: Up to 25mm2,6xoverall diameter;
8. Above to 25mm2: 8x overall diameter
H07/05RN-F Rubber Cable Application
These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical
and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual
equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial
environments.
Product Parameters:
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
| mm² | mm | mm | kg/km |
| 1 | 1.5 | 0.8 | 5.8 | 52 |
| 1 | 2.5 | 0.9 | 6.5 | 67 |
| 1 | 4 | 1 | 7.4 | 92 |
| 1 | 6 | 1 | 8.1 | 119 |
| 1 | 10 | 1.2 | 9.8 | 185 |
| 1 | 16 | 1.2 | 11.35 | 258 |
| 1 | 25 | 1.4 | 13.3 | 375 |
| 1 | 35 | 1.4 | 14.6 | 485 |
| 1 | 50 | 1.6 | 17.2 | 669 |
| 1 | 70 | 1.6 | 19.35 | 892 |
| 1 | 95 | 1.8 | 22.2 | 1160 |
| 1 | 120 | 1.8 | 24.3 | 1436 |
| 1 | 150 | 2 | 25.9 | 1748 |
| 1 | 185 | 2.2 | 29.7 | 2142 |
| 1 | 240 | 2.4 | 31.5 | 2698 |
| 1 | 300 | 2.6 | 36.5 | 3348 |
| 1 | 400 | 2.8 | 40.4 | 4293 |
| 1 | 500 | 3 | 42.6 | 5262 |
| 1 | 630 | 3 | 47.2 | 6790 |
| 2 | 1 | 0.8 | 8.1 | 94 |
| 2 | 1.5 | 0.8 | 9 | 120 |
| 2 | 2.5 | 0.9 | 10.7 | 173 |
| 2 | 4 | 1 | 12.3 | 239 |
| 2 | 6 | 1 | 13.8 | 313 |
| 2 | 10 | 1.2 | 18.6 | 563 |
| 2 | 16 | 1.2 | 21.7 | 830 |
| 2 | 25 | 1.4 | 25.8 | 1211 |
| 3 | 1 | 0.8 | 8.74 | 117 |
| 3 | 1.5 | 0.8 | 9.68 | 147 |
| 3 | 2.5 | 0.9 | 11.48 | 223 |
| 3 | 4 | 1 | 13.2 | 297 |
| 3 | 6 | 1 | 14.78 | 390 |
| 3 | 10 | 1.2 | 19.9 | 705 |
| 3 | 16 | 1.2 | 23.31 | 1031 |
| 3 | 25 | 1.4 | 27.7 | 1512 |
| 3 | 35 | 1.4 | 30.2 | 1907 |
| 3 | 50 | 1.6 | 35.8 | 2651 |
| 3 | 70 | 1.6 | 40.1 | 3484 |
| 3 | 95 | 1.8 | 46.4 | 4594 |
| 4 | 1 | 0.8 | 9.63 | 142 |
| 4 | 1.5 | 0.8 | 10.63 | 180 |
| 4 | 2.5 | 0.9 | 12.6 | 260 |
| 4 | 4 | 1 | 14.6 | 336 |
| 4 | 6 | 1 | 16.4 | 449 |
| 4 | 10 | 1.2 | 21.8 | 833 |
| 4 | 16 | 1.2 | 25.4 | 1138 |
| 4 | 25 | 1.4 | 30.7 | 1714 |
| 4 | 35 | 1.4 | 33.4 | 2204 |
| 4 | 50 | 1.6 | 39.6 | 3029 |
| 4 | 70 | 1.6 | 44.9 | 4121 |
| 4 | 95 | 1.8 | 51.9 | 5361 |
| 4 | 120 | 1.8 | 61.3 | 7400 |
| 5 | 1.5 | 0.8 | 11.8 | 206 |
| 5 | 2.5 | 0.9 | 14 | 297 |
| 5 | 4 | 1 | 16.2 | 422 |
| 5 | 6 | 1 | 18.2 | 567 |
| 5 | 10 | 1.2 | 24 | 1010 |
| 5 | 16 | 1.2 | 28.2 | 1400 |
| 5 | 25 | 1.4 | 33.9 | 2096 |
| 5 | 35 | 1.4 | 37.2 | 2700 |
| 5 | 50 | 1.6 | 44 | 3730 |
| 5 | 70 | 1.6 | 54 | 4945 |
| 5 | 95 | 1.8 | 63 | 6430 |
| 7 | 1.5 | 0.8 | 15.13 | 315 |
| 7 | 2.5 | 0.9 | 17.6 | 445 |
| 12 | 1.5 | 0.8 | 18.2 | 493 |
| 12 | 2.5 | 0.9 | 21.4 | 702 |
| 19 | 1.5 | 0.8 | 22.1 | 710 |
Company Profile
Henan Huadong Cable Co., Ltd. Is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International
Trade,Founded in 1999, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 150,000 Square Meters, With Advanced
20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers
We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC
Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane And Other Special Use Cables.
