ASTM D92 Standard Transformer Oil Cleveland Open Cup Flash Point Tester

Product Description

Product Description

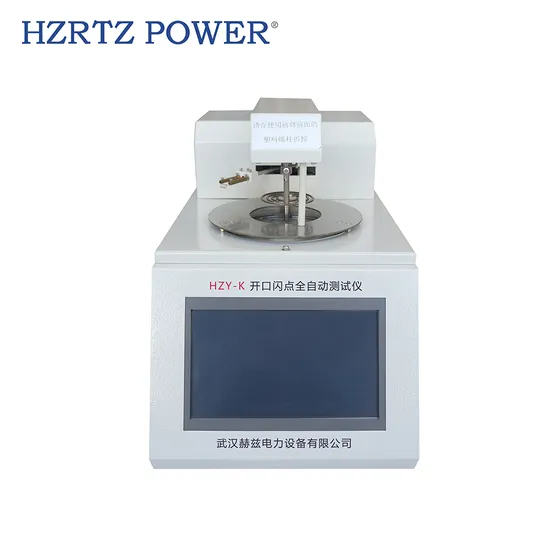

HZY-K Automatic Open Cup Flash Point Tester is used to determine the open flash point value of petroleum products. The instrument adopts electric ignition method without any flammable gas, which meets the method requirements of GB3536-2008 and GB267-88. It adopts ARM series high-performance microprocessor, electrically erasable memory (which can store thousands of data records), 7-inch color LCD and touch screen, PID self-tuning and many other latest technologies.
Product Features
1. Strong function. Detect the flash point and print the test results, with internal clock chip, automatically display the current date, time, power-down keep.
2. High precision. Temperature error control within ± 1 ºC, resolution of 0.1 ºC.
3. Good repeatability. In order to ensure that the test environment in line with GB3536 or GB/T 26788, continuous testing of the same sample, the difference between the two flash point value of ≤ 4 ºC.
4. High degree of automation. Can automatically complete the test process, automatic cooling, automatic information prompts.
5. The interface is friendly and humanized stronger, all English characters input, convenient for users to mark and find.
Open flash point tester function and performance and the highest level of domestic and foreign convergence, is the petroleum, electric power, chemical industry, commodity inspection and other industries to replace the imported products of the special
instrument.
Detailed Photos
Technical Parameters
1. Determination range: 40ºC~400ºC
2. Detection type: open flash point
3. Temperature detection: platinum resistance
4. Accuracy: ±1ºC
5. Repeatability: in line with GB3536-2008, GB/T 267-88
6. Display: 7-inch touch screen, color liquid crystal display
7. Information storage: 1000 measurement results can be stored
8. Ignition mode: electric ignition
9. Cooling mode: forced air cooling
10. Atmospheric pressure: automatic detection of atmospheric pressure, automatic correction of test results
11. Printer: Dot-matrix thermal printer
12. Self-checking function: lifting lever, sweeping lever, printing, etc.
13. Power consumption: ≤600VA
14. Power supply: AC 220V±11V, frequency 50Hz±2.5Hz
15. Operating temperature: 10~35°C
16. Humidity: ≤90%.
17 Packing weight: about 17kg
Product Dimension
Company Profile
Similar Recommendation
FAQ
Q1:Is your company a sales or a manufacturer?
We are an integrated trade and manufacturing company with our own factory.
Q2:If we need to customize our own brand or if there are special requirements for the built-in software of the machine, can it be customized?
Yes, we accept OEM/ODM/OBM and can customize the built-in software of the product according to the customer's special requirements.
Q3:What is the usual lead time? How long can we receive the order after placing it?
In normal circumstances, products in stock can be received within 5 to 7 days via the fastest international express. Other situations may vary depending on the quantity of products ordered, whether there are special customization requirements, and the delivery time chosen.
Q4:How can we ensure that the product will not be damaged during transportation, considering the large size of the product?
We have professional internal and external packaging to ensure the safety and stability of the products during transportation. For fragile or other special parts, we will include an extra set to ensure that the customer can use the product immediately upon receipt.
Q5:How do you handle after-sales service? What if there is a quality problem with the product or if the customer does not know how to operate it?
For quality issues that are not caused by human error, we provide a one-year warranty from the time the product is delivered, and lifetime technical support. Other after-sales issues will be addressed by our professional technical staff within 24 hours. The product comes with a user manual and an operation video.

---
