Factory Directly Wholesale Radial Turret Milling Machine Metal Universal 4hw 5hw Horizontal and Vertical Turret Milling Machine with CE

Product Description

Product Description
Vertical and Horizontal Turret Milling Machine Fresadora 4HW 5HW Metal Universal MillingMachine
1.Turret Milling Machine has reasonable construction and superior machining functions such as drilling, boring, milling of plane, inclined plane and slot, and such functions available by use of the corresponding attachments as milling of helix slot, round surface, rack, gear and spline2.Rectangular guide way on Yaxis is featured a good rigidity and stability, The guide way on Radial Milling Machine saddle is lined with TF wearable material3.High speed milling head from Taiwan4.Harden the slide way and table surface5.Machining the T slot by special tools, make the T slot does not extend out of the table edge, which increase the rigidity and make the machine have good appearance 6.The slide way have been precision scraped by hand. Which could keep high precision and smooth moving7.XYZ axis screws are made in Taiwan8.XY screw with two nut make it easy to adjust space between the screw and nut.9.The XY screw bracket is designed in one base, have good precision and rigidity.10. The electro system have been designed according to the CE standard

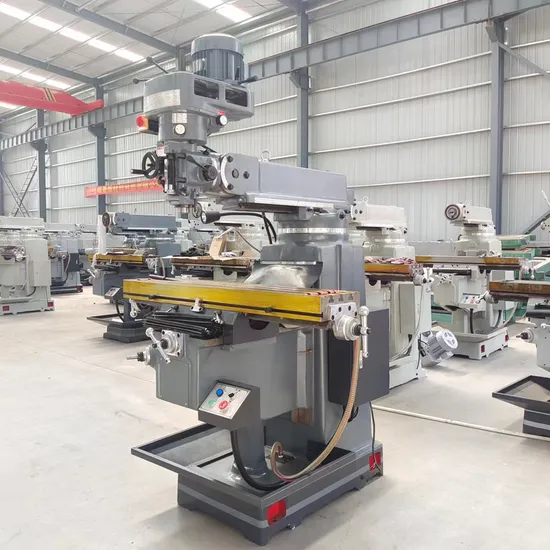

Detailed Photos

Specifications	Units	4HW	5HW
Table size	mm	1270x254	1370x305
Table travel	mm	780/420/400	810/420/400
T slot(number-width-pitch)	mm	3-16-65	3-16-65
Spindle taper		(V) R8/ISO40 (H) ISO40	(V) R8/ISO40 (H) ISO40
Spindle speed range	rpm	(V)50HZ:65-4500 60HZ:80-5440,16 steps; (H)45-1350,12 steps	(V)50HZ:65-4500 60HZ:80-5440,16 steps; (H)45-1350,12 steps
		Optional:variable 65-4000	Optional:variable 65-4000
Spindle travel	mm	127	127
Spindle feed range	mm	0.04,0.08,0.15 (3 steps)	0.04,0.08,0.15 (3 steps)
Distance between spindle axis and table surface	mm	0-400	0-400
Main motor power	kw	2.2(V)3(H)	2.2(V)3(H)
Head rotation (left - right )	°	±90°	±90°
Head rotation (front - rear)	°	±45°	±45°
Weight	kg	1750	1850
Overall dimension	mm	1550x1650x2250	1550x1650x2250

1, Heavy, solid model made of high-grade Meehanite casting 2, Solid rectangular slideways for Y-axis 3, All axis with adjustable dovetail slideways 4, Right-left handed rotation 5, High concentricity precision due to taper roller bearings, less than 0.01mm measured in the spindle sleeve 5, Automatic spindle sleeve feed 6, Main switch with motor protection, right/left handed rotation switch, emergency-stop button 7, Price-efficient and value stable
Packaging & Shipping
Company Profile
Henan Rowdai Machinery Equipment Co.Ltd Located in Zhengzhou.the central place of China. With long time exporting machines experience, we can not only supplyingour customers stable quality products ,but also more excellent service.we supply all kinds of Machine tool to international market, like Lathe machine, CNC Lathe Machine, Milling Machine, CNC Milling Machine, CNC Machining Center, Grinding Machine, Hydraulic Press, Bending Machine, Drilling Machine, Press brake, Shearing Machine, and Machine tool accessories. We have our own engineer who has more than years of working experience and is professionally trained. Our trained engineers can help customers on behalf of company not only inspect goods before shipping but also track all links of production process.
FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.

---
