Product Description
Product Description

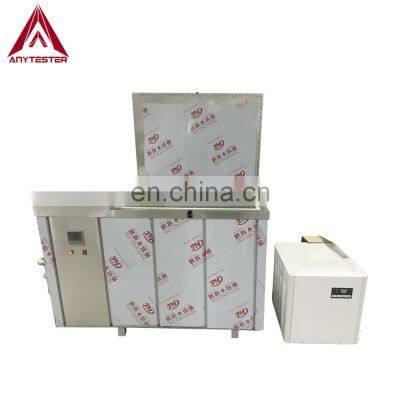

Product DescriptionAT470 Hydrostatic Pressure Tester is mainly used to determine time-to-failure of plastic pipe under constant internal pressure and also the resistance to hydrostatic pressure in a short time period.StandardASTM D1598, 1599ASTM F1335ISO 1167, 9080, 1756, 13477GB/T 15560, 18252, 6111CJ/T 108Note: For more standards, please contact usSpecificationModelAT470Pipe diameter rangeΦ10~Φ2000mmWorking position6 positions (1~50 positions can be customized)Operation modeOperation panel/PC controlPressure range0.2~10MPa (or customized)Pressure resolution0.001MPaPressure control accuracy-1%~+2%Measuring range5%~100% F.S.Timing range1s~10000hTiming accuracy±0.1%Display resolution1sMin. Time setting unitminTemperature control systemRT-95℃ (15~95℃ with refrigerating system)Temperature control accuracy±0.5℃Main body material304# stainless steelPower supplyPressure control main machineAC220V, 50HzPressure workstation3phase, AC380V, 50HzConstant temperature tank3phase, AC380V, 50HzDetails & Features★ The main machine consists of pressure control unit, magnetic valve, sensor, pressure workstation, etc. ★ The number of working position can be customized according to requirement, that is to say, the interface of pressure can be customized such as 3, 6 or 10★ The dimension of test tank needed bases on the dimension of test pipesMODELDimensions (mm)PowerLWH(kw)11075045070061601620770130592501750870167594002250950145012630-71027501370123518800-100031001670155527120031001950191554★ Refrigerating system optional. The test tank can be connected with refrigerating machine to perform low-temperature test, thus test temperature can be RT-95℃ or 15~95℃★ Stainless end caps of different diameter can be selected according to customers’ requirement, the material is stainless steel or carbon steelStainless steel end capsEnd closuresSpecificationD16~D1600StructurePan structureSealing ringO-ringConversion connectorPT1/4, internal thread, stainless steel materialEnd closures connectorM12*1.25, internal threadPressure rangeD16~D110mm0~10MPa (20MPa max. For D16/20/25 )Φ125~Φ630mm0~5MPaMaterialStainless steel★ One microcomputer control one working position, it can separately set and control pressure, accuracy, time and other parameters while the computer does not work. Real-time display pressure, time and status (8 statuses: pressure rise, pressure compensate, pressure release, over- pressure, run, test over, leakage, burst) and also store these test data. It is also equipped with sound and light alarm when over-pressure, test over, leakage or burst happens ★ Imported (Germany) pressure control electric valve, two pieces for each working position, high accuracy ★ Imported (USA) water pressure station, excellent performance, long service life, low noise, no need to use air source★ Adopt high precision sensor, the control accuracy can reach ±0.01MPa of set value★ Can observe, analyze, check, store and print test curve (pressure-time), start time, set time, current time, effective time, ineffective time, remaining time, over-pressure time, pressure compensation time, etc.Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting UsJaiy HuJaiy HuWebsiteMobile Phone+86 18855105986Whatsapp+86 13225753235SkypeJaiy HuWechatHDD528483971
>>
